Product Details
＋

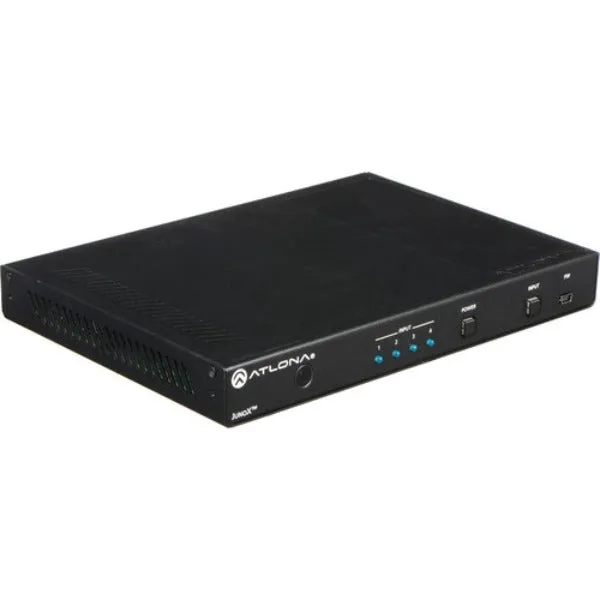

Designed to facilitate the display of HDR content, the JunoX 451 HDBT 4K HDR 3 x 1 HDMI/ 1 x HDBaseT Switcher from Atlona features one HDBaseT input, three HDMI inputs, and one HDMI output. It supports up to DCI/UHD 4K video at 60 Hz with 4:4:4 sampling, and offers HDMI data rates up to 18 Gb/s. High-dynamic range (HDR) functions include HDR 10 and Dolby Vision support. The JunoX 451 HDBT is compatible with the separately available Atlona UHD-PRO3, UHD-CAT, and SW Series for HDBaseT extensions up to 10 Gb/s.
specifications
| Input | HDBaseT: 1 x RJ45 HDMI: 3 x HDMI 2.0 type A |
| Output | HDMI: 1 x HDMI 2.0 type A Optical: 1 x TOSLINK |
| Other | RS-232/IR: 1 x 5-pin captive screw LAN: 1 x RJ45 5 VDC Input: 1 x 5.5 mm barrel, locking Firmware Updates: 1 x USB Mini-B Video Input Indicators: 5 x LED, blue |
Resolution
| Video | UHD/HD/SD: 4096 x 2160: 60/50/30/25/24 3840 x 2160: 60/50/30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p 576i 480p 480i |
| VESA | 2560 x 2048, 2560 x 1600, 2048 x 1536 1920 x 1200 1680 x 1050, 1600 x 1200, 1600 x 900 1440 x 900, 1400 x 1050 1366 x 768, 1360 x 768 1280 x 1024, 1280 x 800 1280 x 768 1152 x 768 1024 x 768 800 x 600 |
| Color Space | YUV, RGB |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Depth | 8-bit, 10-bit, 12-bit |
| HDR Support | HDR10, Dolby Vision at 60 Hz |
| Input | HDMI / HDBaseT: PCM 2-channel LPCM 5.1, LPCM 7.1 Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos DTS-HD Master Audio, DTS:X |
| Sample Rate | 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz |
| Maximum Bit Rate | 24-bit |
| Maximum Resolution / Distance | UHD 4K via HDMI In/Out: 16.4' / 5 m 1080p HDMI In/Out: 32.8' / 10 m UHD 4K via Cat 5e: 295' / 90 m 1080p via Cat 5e: 330' / 100 m UHD 4K via Cat 6/6a/7: 330' / 100 m 1080p via Cat 6/6a/7: 330' / 100 m |
| Bandwidth | HDBaseT: 18 Gb/s |
| Standards | HDMI: 2.0 USB: 2.0 HDCP: 2.2 |
| Consumption | 6.6 W |
| Idle Consumption | 5.9 W |
| Power Supply | Input: 100 to 240 VAC, 50/60 Hz Output: 5 VDC |
| Dimensions | 8.6 x 6 x 1" / 219 x 152 x 26 mm |
| Weight | 1.81 lb / 0.82 kg |
| Package Weight | 3.25 lb |
| Box Dimensions (LxWxH) | 15.5 x 8.6 x 2.8" |
