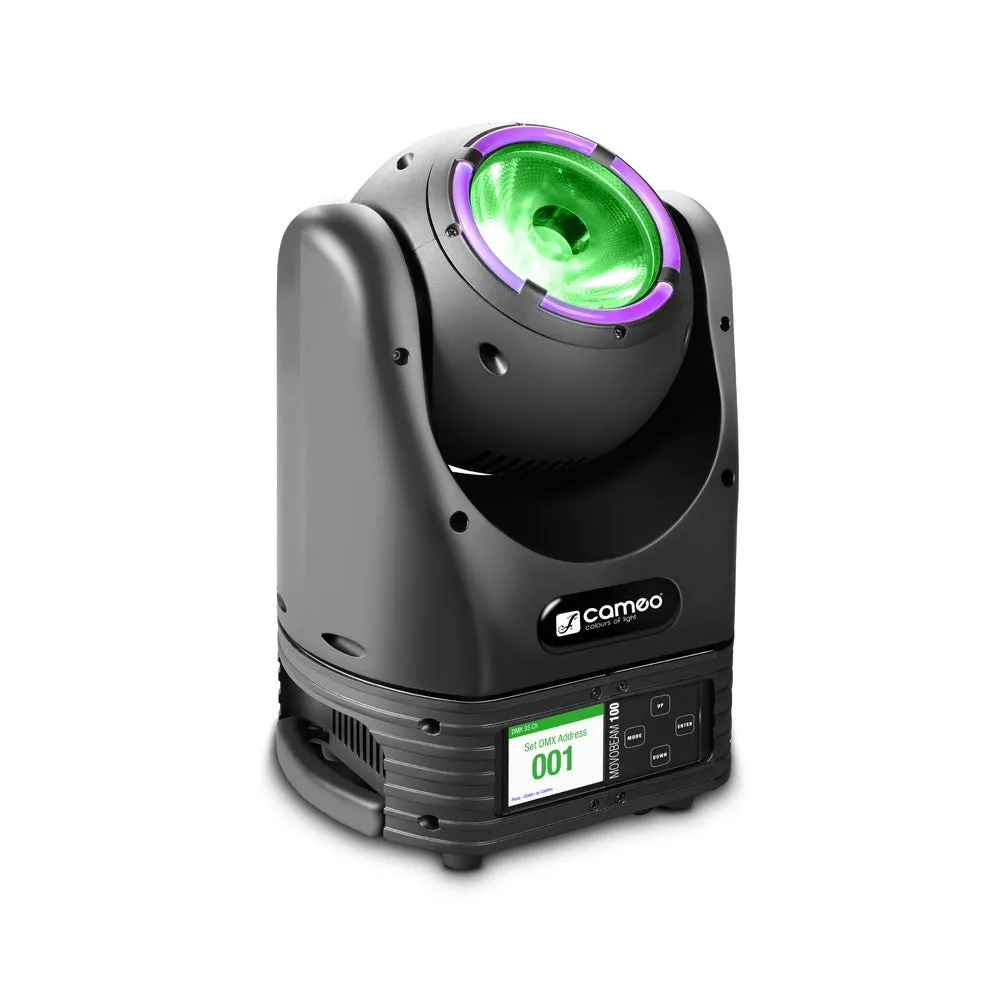

The MOVO® BEAM 100 is a powerful ultra-fast moving head delivering a narrow and defined 5,5° beam. A central high-performance 60 watt Osram LED produces rich RGBW mixes with saturated primary colours, subtle pastel hues and natural shades of white. It is surrounded by an RGB LED ring with 4 individually controllable segments to enable a multitude of spectacular beam effects. With its 1,000 Hz refresh rate the fixture is perfect for motion picture and TV applications.
Driven by two high-speed, high-torque motors the MOVO® BEAM 100 provides continuous pan and tilt with smooth precision. It sports a bright 2.5" TFT display with touch sensitive buttons for convenient configuration, DMX control and amazing automated modes. Linear dimming with 4 selectable curves, a rapid strobe and colour temperature correction add to a brilliant and exciting performance.
The MOVO® BEAM 100's compact compound housing features fan cooling to ensure reliable operation and extended LED life. It comes with an omega bracket for a variety of mounting options.
Features
- Ultra-bright 60 W Osram RGBW LED for saturated primary colours, subtle pastel hues and natural shades of white
- Individually controllable 4-segment RGB LED surround with single pixel control

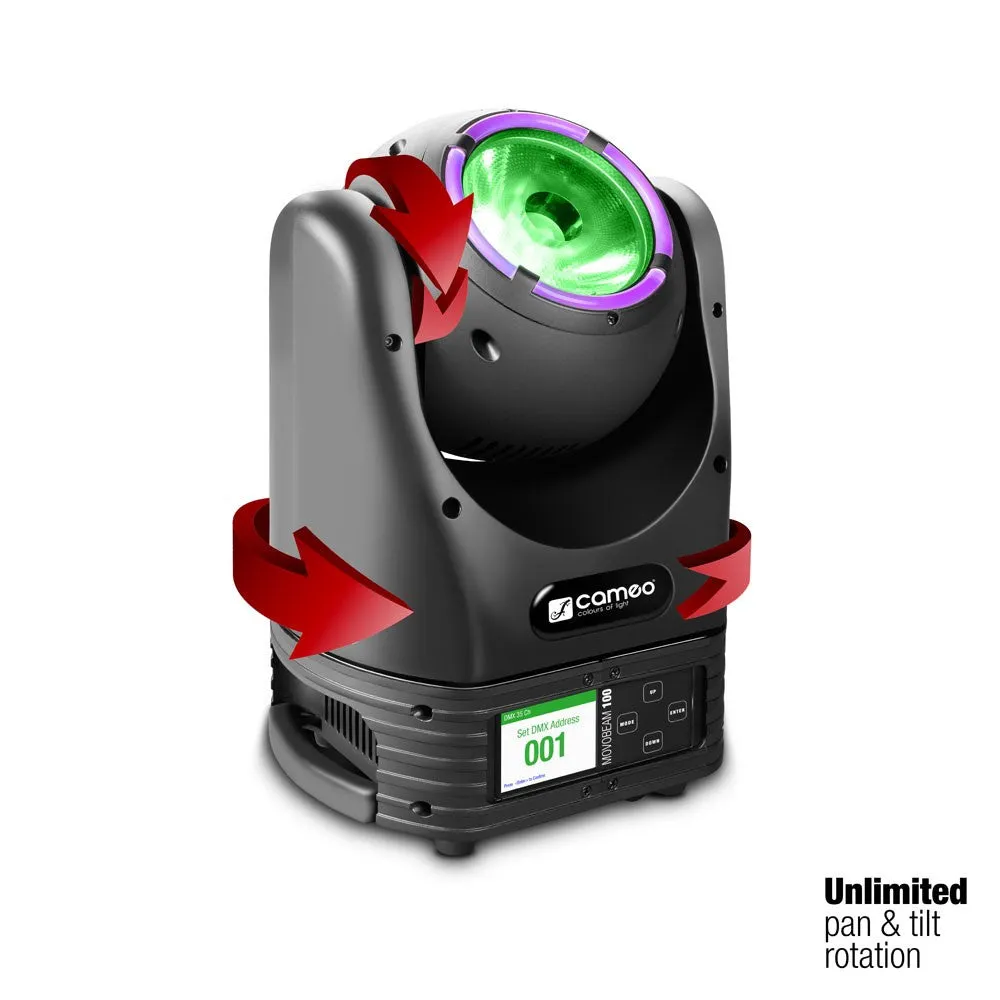

- 2 high-speed motors for ultra-fast continuous pan and tilt
- Fantastic automated modes
- 4 selectable dimming curves
- 4 DMX modes and standalone, master or slave operation

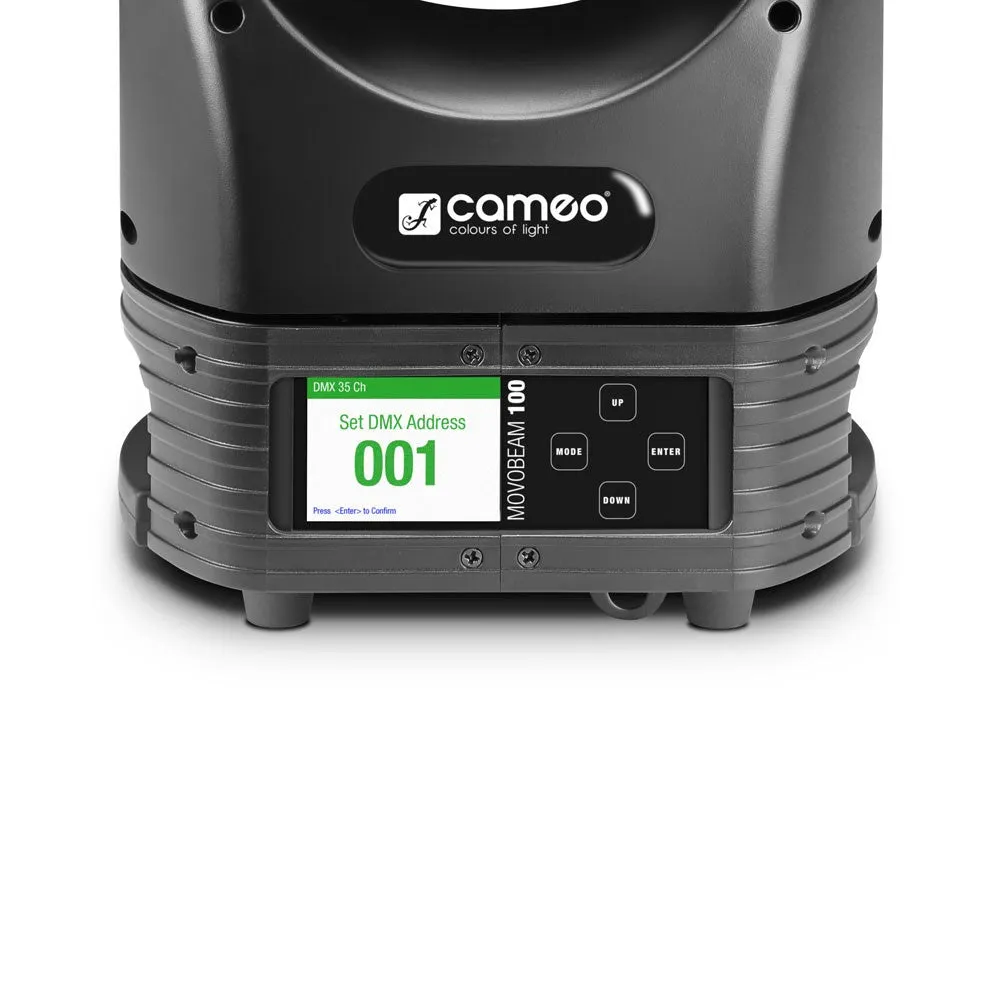

- 2.5" TFT display and touch sensitive buttons for intuitive configuration

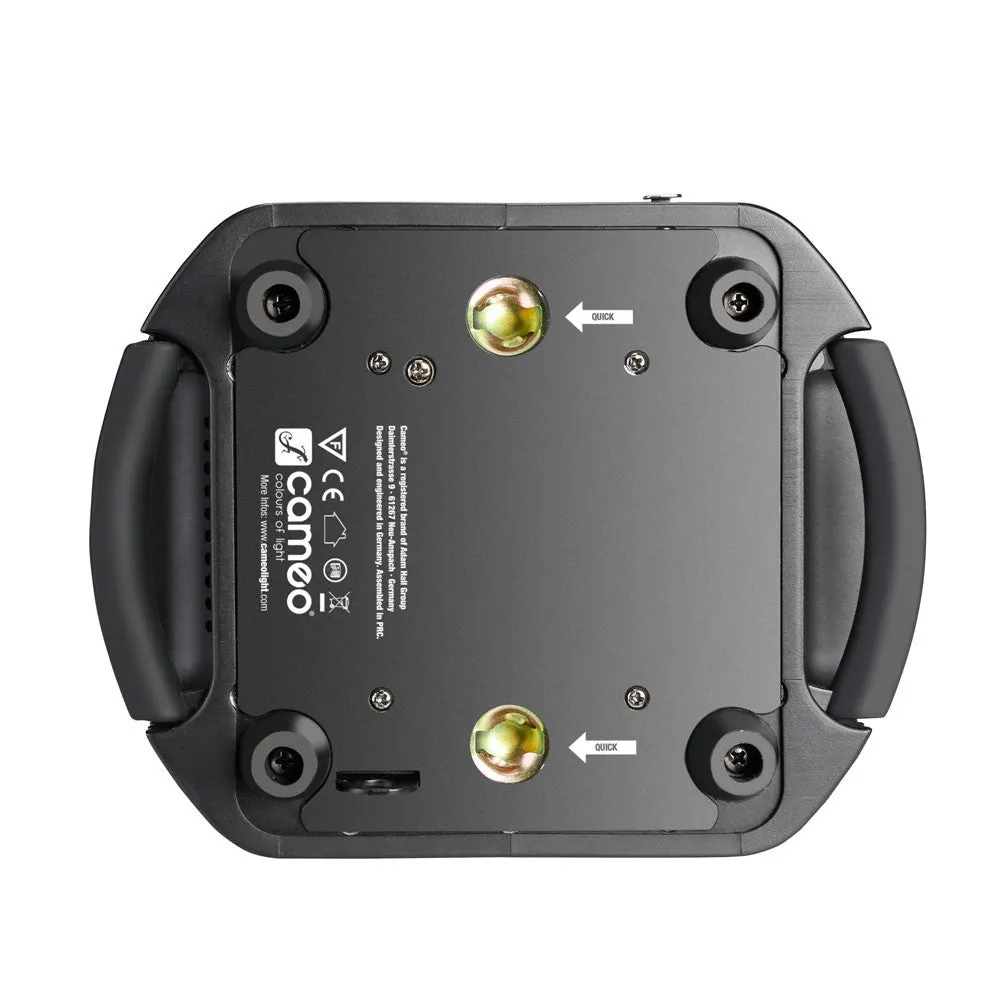

- Omega mounting bracket included
Specifications
- Product type: LED Moving Lights
- Type: LED Moving Effects
- Colour spectrum: RGBW
- Number of LEDs: 1
- LED type: 60W OSRAM (approx. 50.000 operating hours)
- Refresh rate: 1000 Hz
- Dispersion: 5.5 °

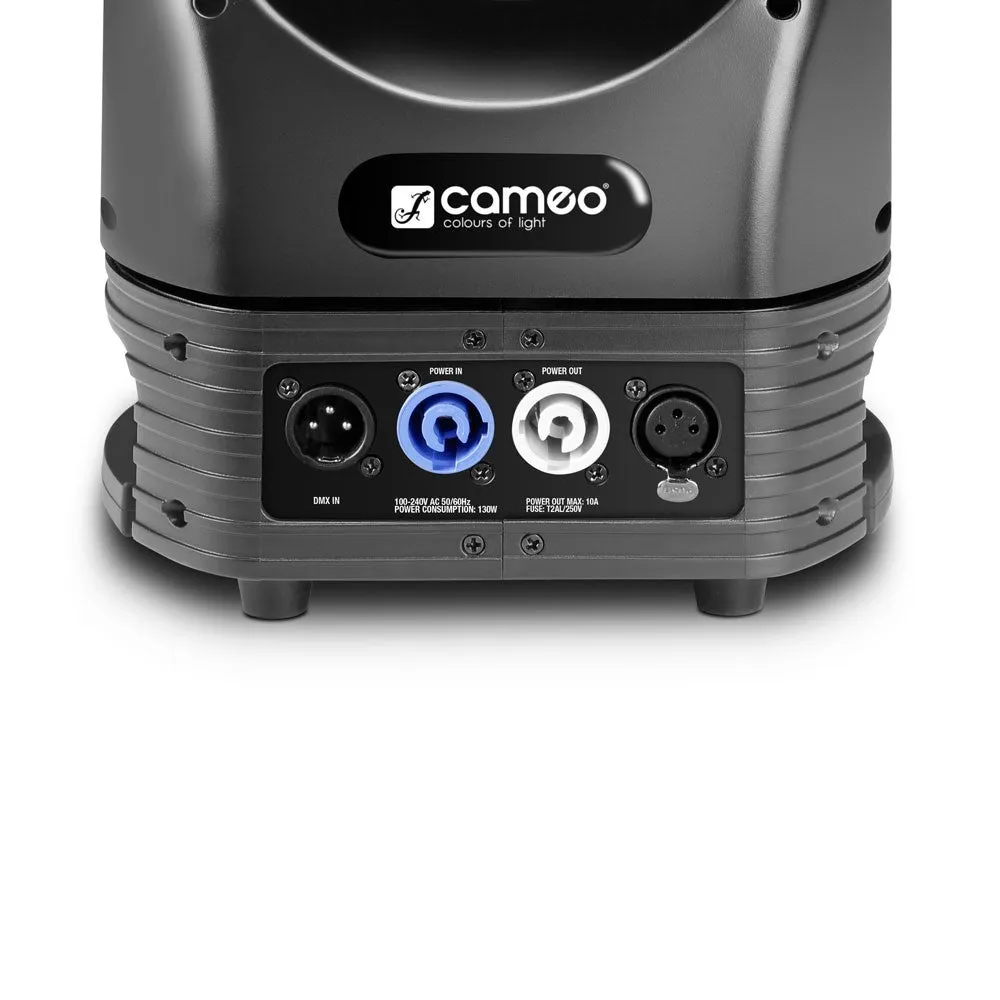

- DMX input: XLR 3-pin male
- DMX output: XLR 3-pin female
- DMX mode: 15-channel, 4-channel
- DMX Functions: Auto programs, colour fade, colour jump, colour macro, Colour Ring Macro, Colour Ring Macro Speed, Dimmer, Dimmer Colour Ring, Dimmer Curve, Dimmer Fine, PAN, PAN UNLIMITED ROTATION, Pan/Tilt fine, Pan/Tilt Macros, Pan/Tilt Speed, RGB Ring 1-4, RGBW, Strobe Colour Ring, Stroboscope, TILT, TILT UNLIMITED ROTATION
- PAN movement: unlimited / 540°
- TILT movement: unlimited / 270°
- Standalone modes: Auto programs, Static Mode
- Controls: Enter, Mode, Value Down, Value Up
- Indicators: 2,5” TFT Display
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
- Power consumption: 130 W
- Power connector: Blue and white power I/O
- Housing material: ABS plastic, Metal
- Cabinet colour: Black
- Cooling: fan
- Illuminance: 157000lx @ 1m
- Luminous flux: 1480 lm
- Width: 210 mm
- Height: 299 mm
- Depth: 210 mm
- Weight: 6 kg
