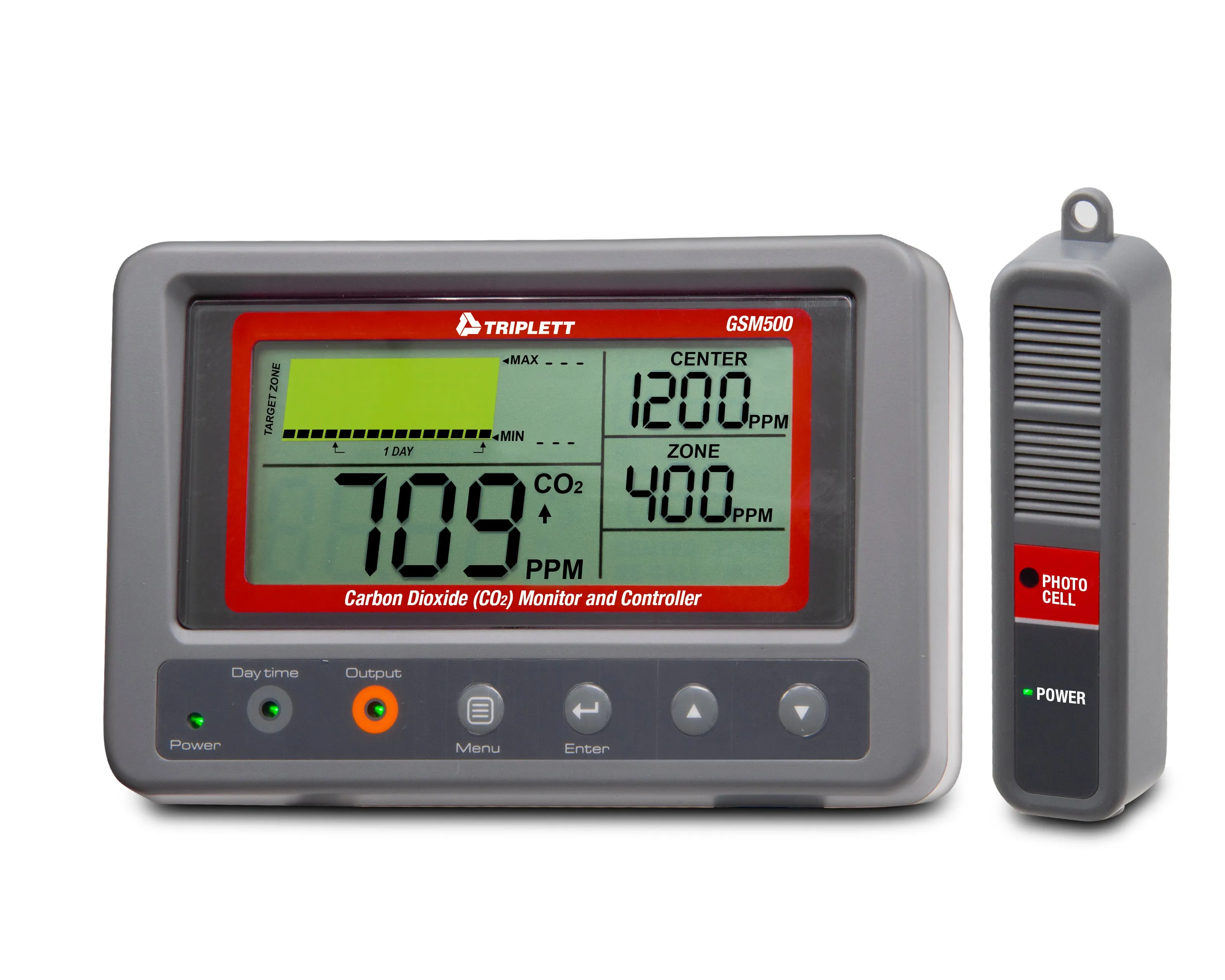

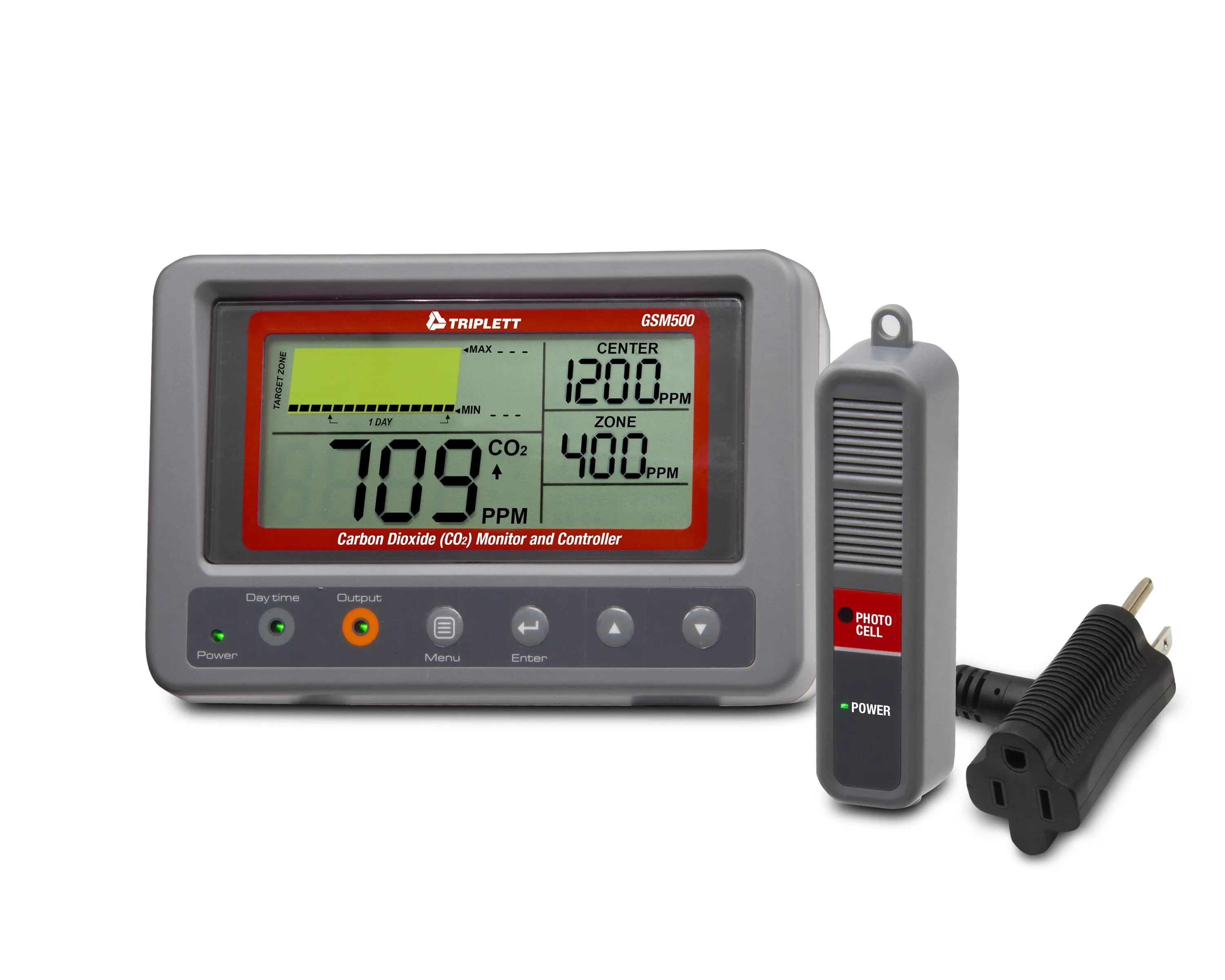

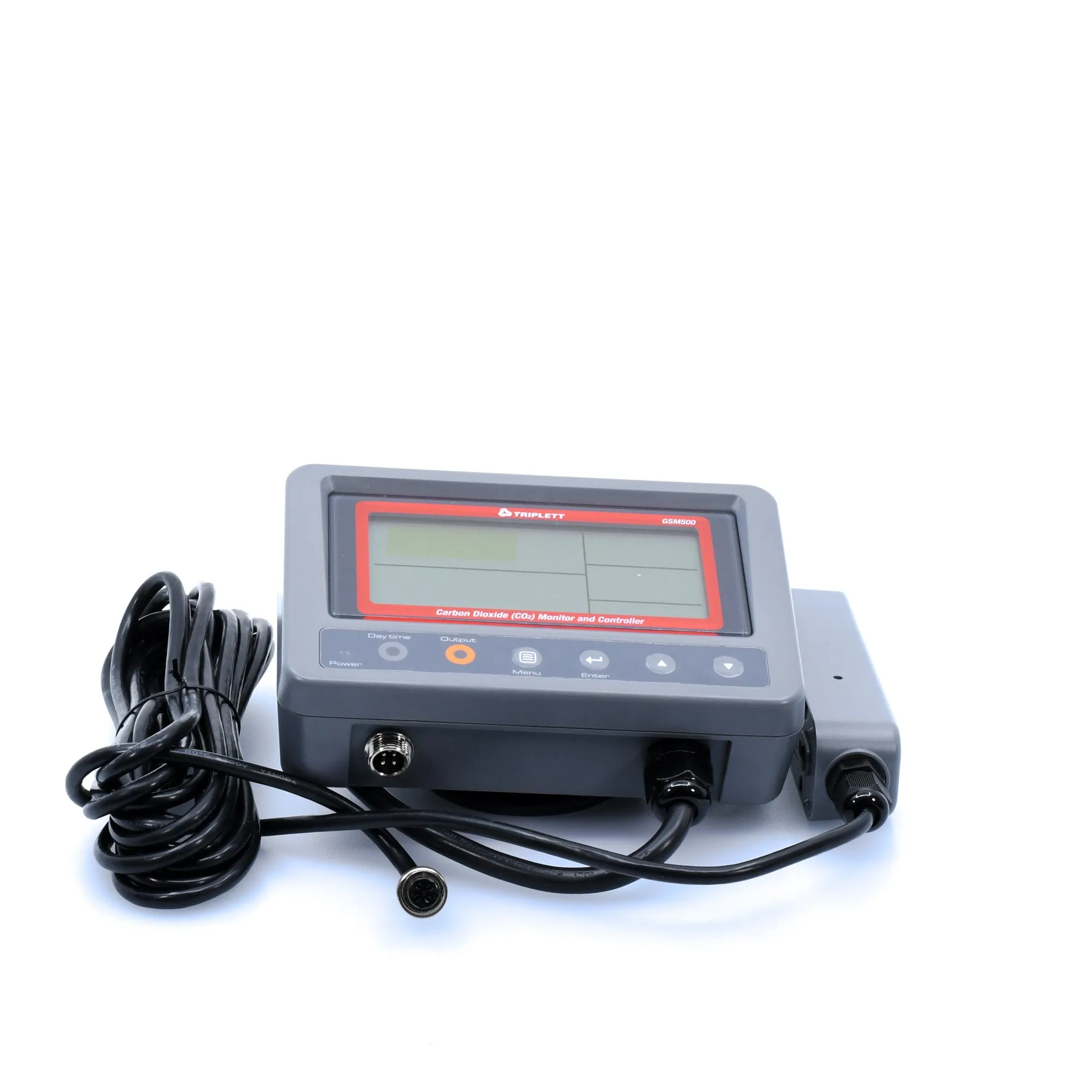

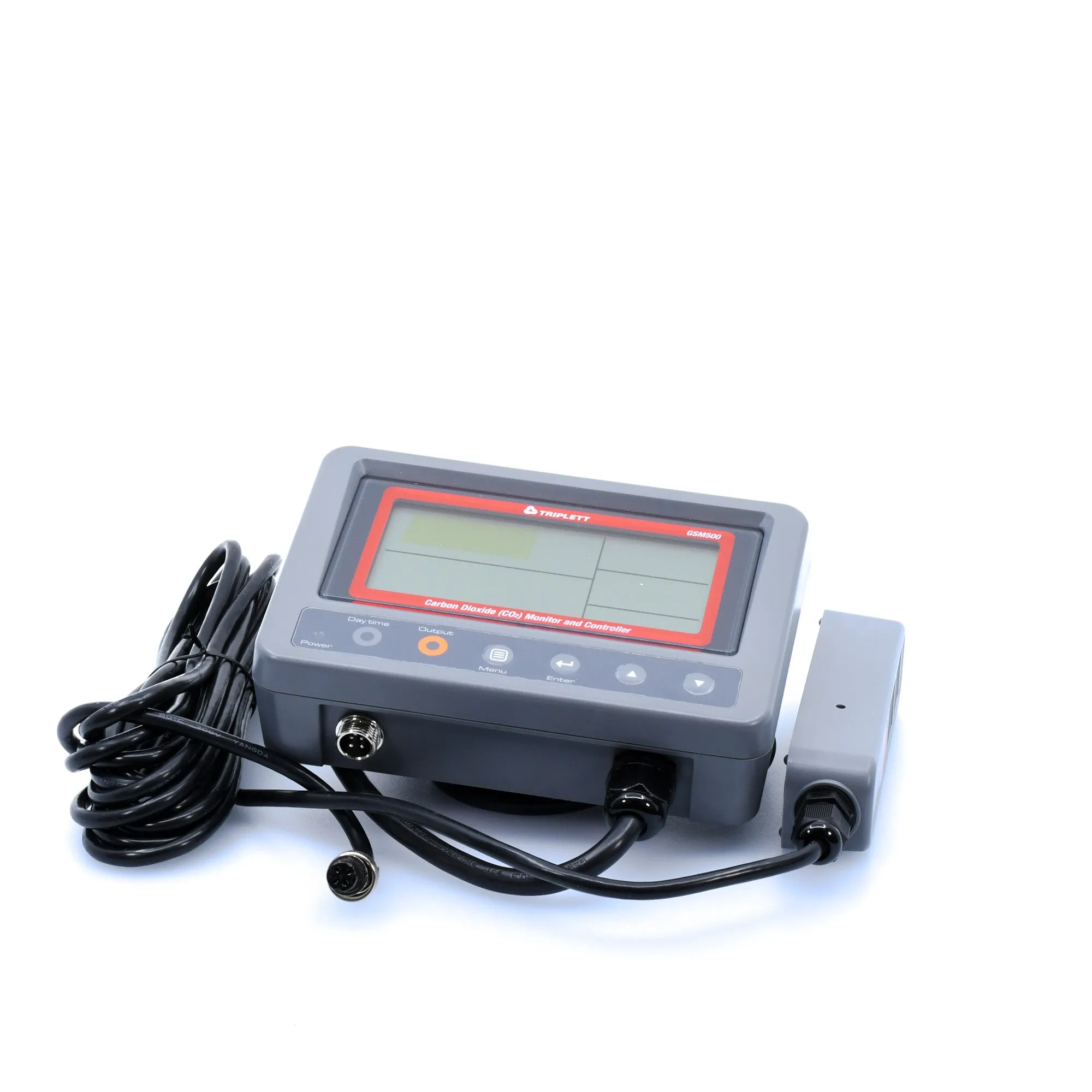

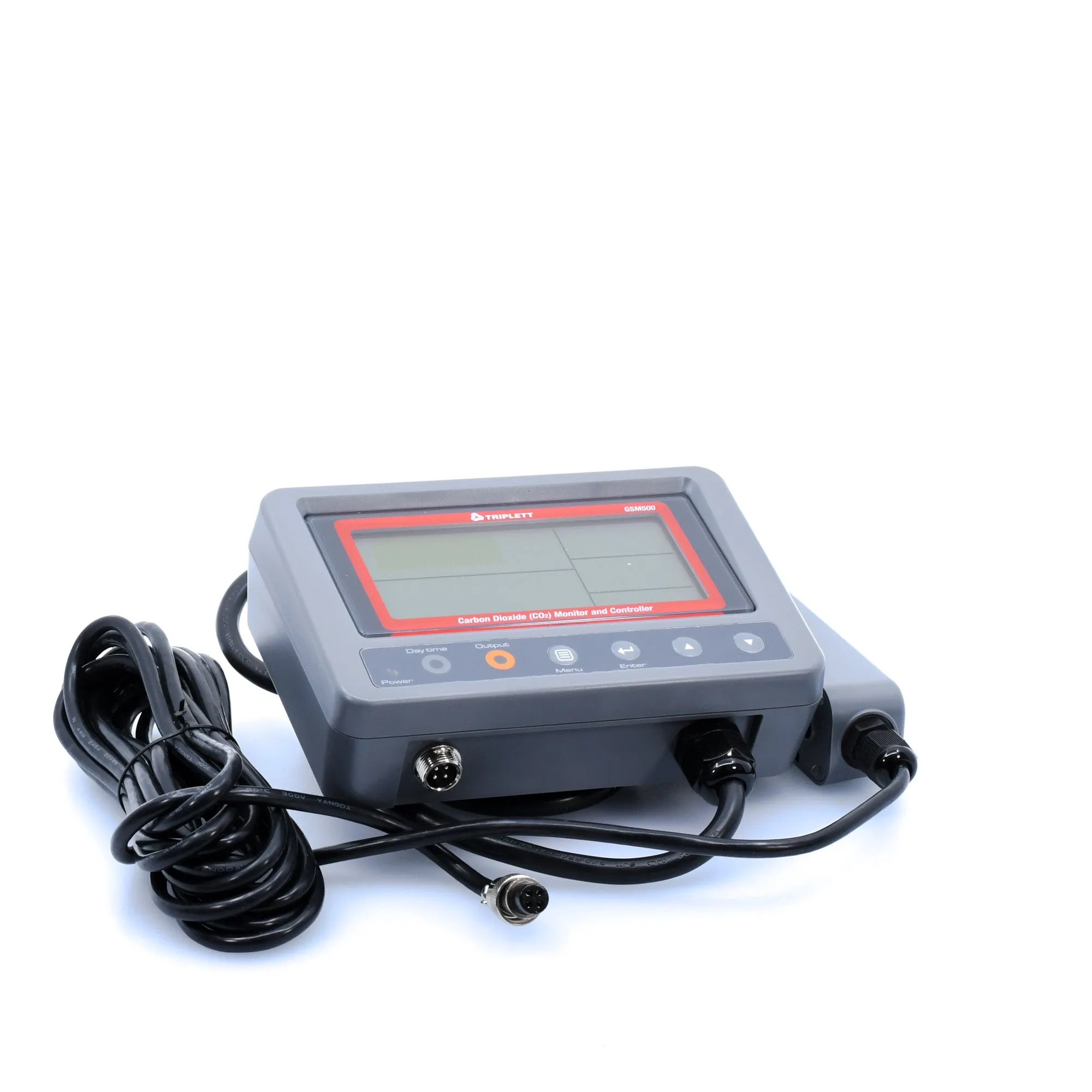

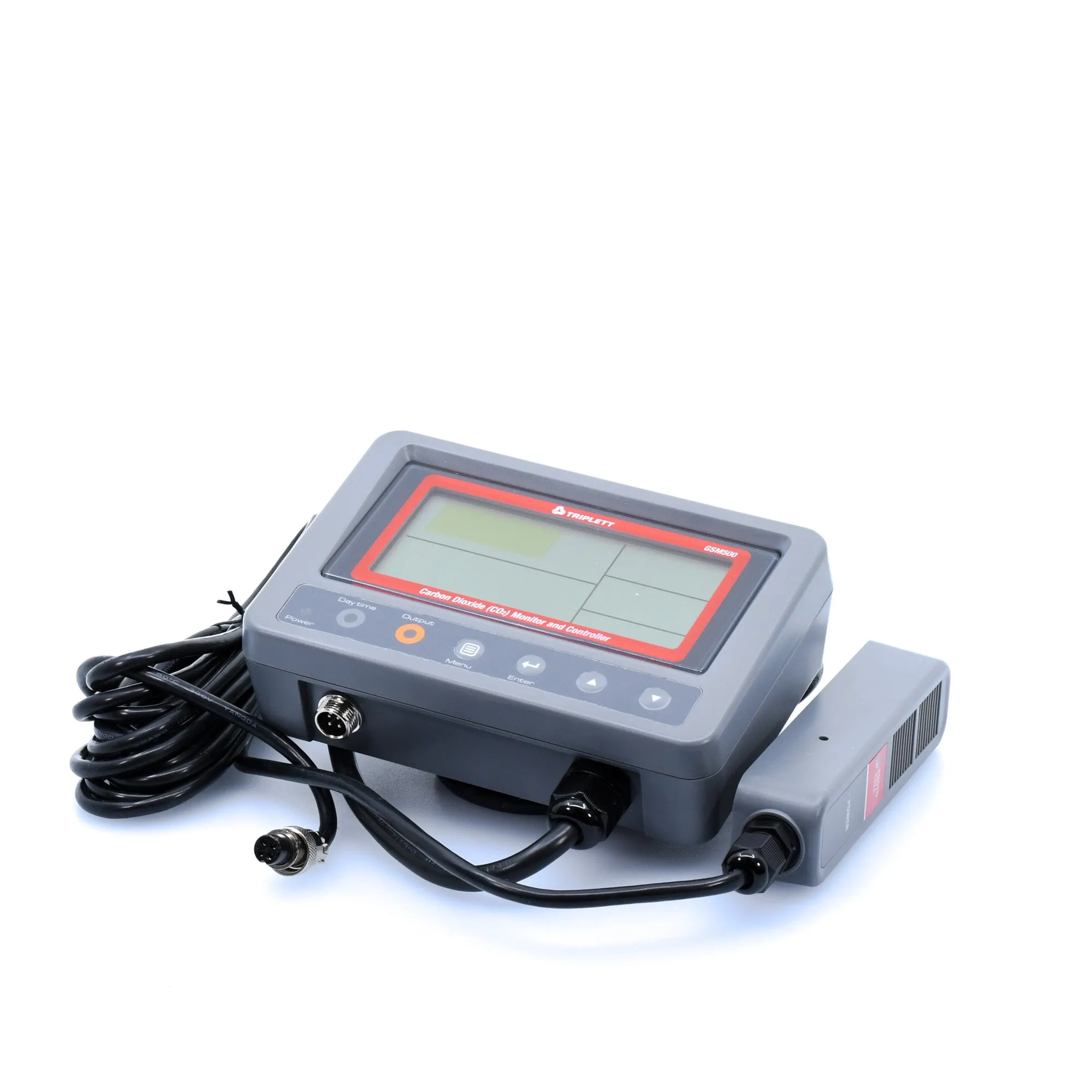

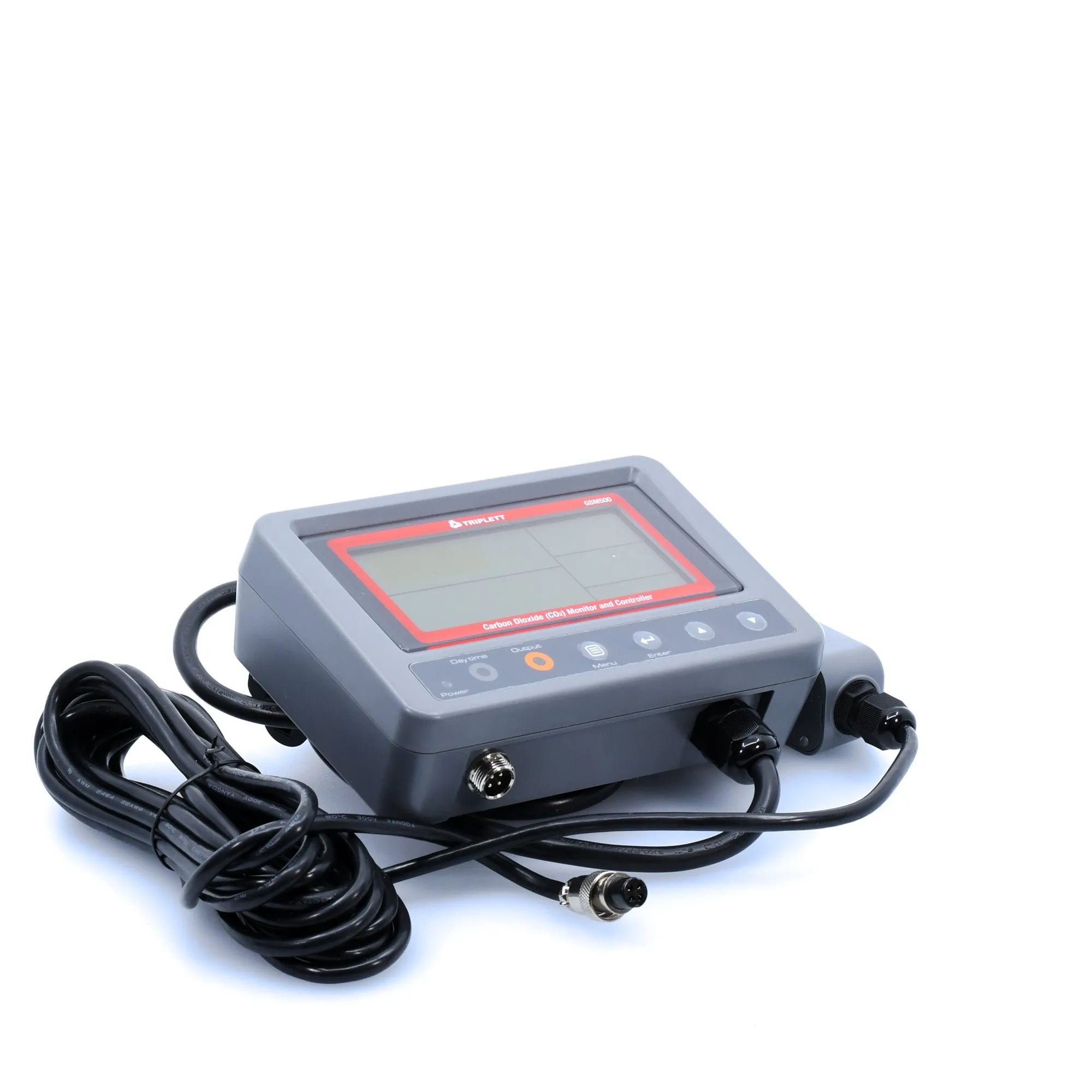

Manage your indoor CO2 levels with the Triplett Model GSM500 Carbon Dioxide Monitor/Controller. This versatile device helps to monitor and regulate CO2 values in enclosed spaces, providing different modes for plant and human environments.
DESCRIPTION

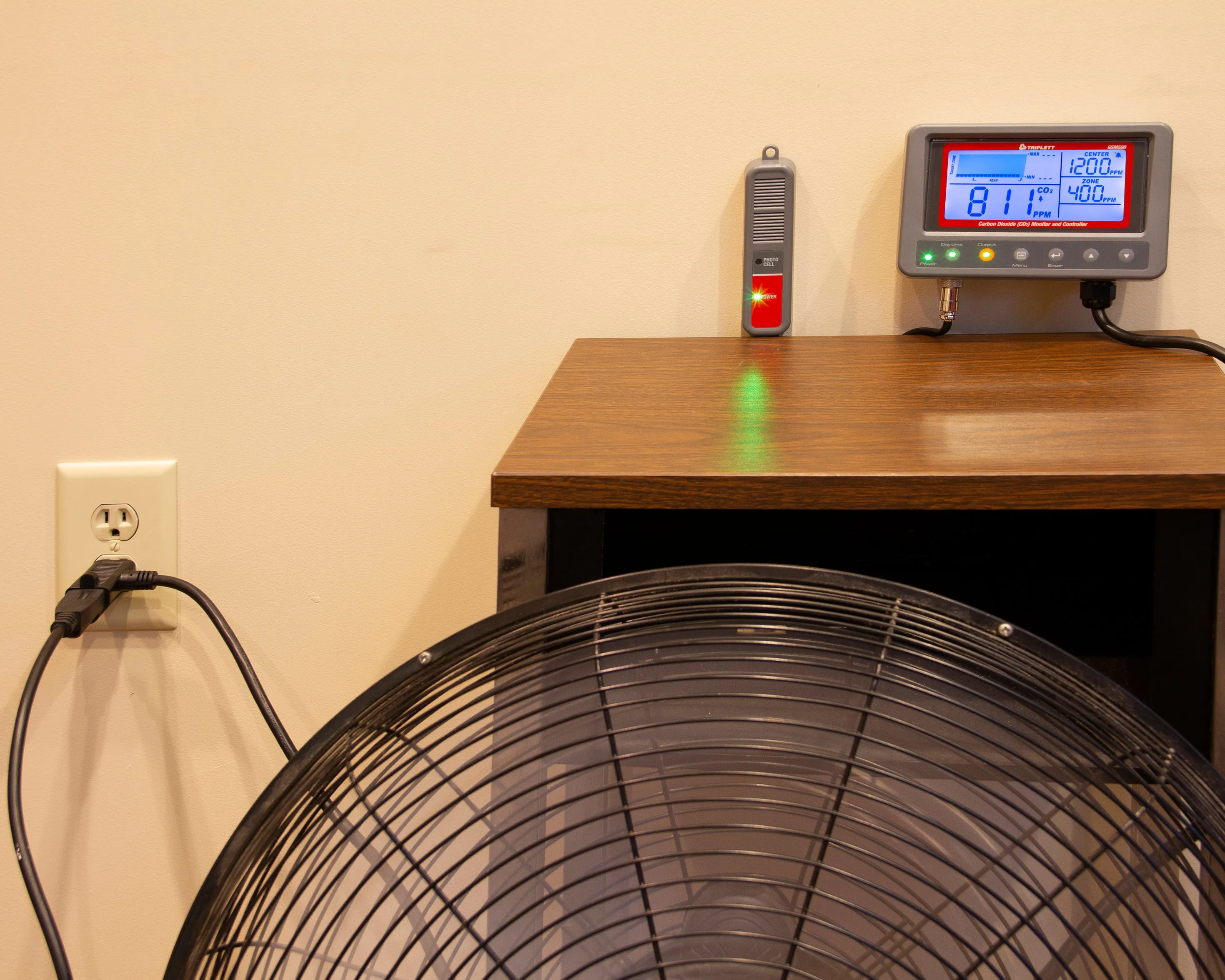

Manage your indoor CO2 levels with the Triplett Model GSM500 Carbon Dioxide Monitor/Controller. This versatile device helps to monitor and regulate CO2 values in enclosed spaces, providing different modes for plant and human environments. Connect it to a CO2 generator for greenhouse use, or control a ventilation fan for residential/commercial spaces. The included remote sensor with a 14.8ft (4.5m) cable utilizes NDIR waveguide technology for precise and reliable readings. The unit also offers a dynamic CO2 chart with adjustable time scales and auto Min/Max recall. Customize preset CO2 zone and center values based on your requirements, with built-in day/night auto detection in plant mode for overriding CO2 control. The package includes an AC power cord, mounting screws, and tape for mounting the sensor probe. Backed by a 1-year warranty for peace of mind.
CATEGORY:
Features
- Closed Space CO2 Management: Monitor and control CO2 values in enclosed residential/commercial spaces and greenhouses.
- NDIR Technology: The included sensor uses NDIR waveguide technology for accurate and low-drift readings.
- Dynamic CO2 Chart: Displays CO2 levels over time with adjustable scales (week/day/hour/min/auto).
- Automatic Min/Max Recall: Automatically shows the highest and lowest readings on the displayed chart.
- User Programmable: Preset CO2 zone and center values for human or plant mode, along with an audible CO2 alarm.
- Output Control: Programmable CO2 zone value and center value to control output power on/off.
- Built-In Day/Night Detection: In plant mode, auto detection overrides CO2 control as per day/night cycles.
- Fresh Air Calibration: Allows calibration in fresh air conditions (~400ppm).

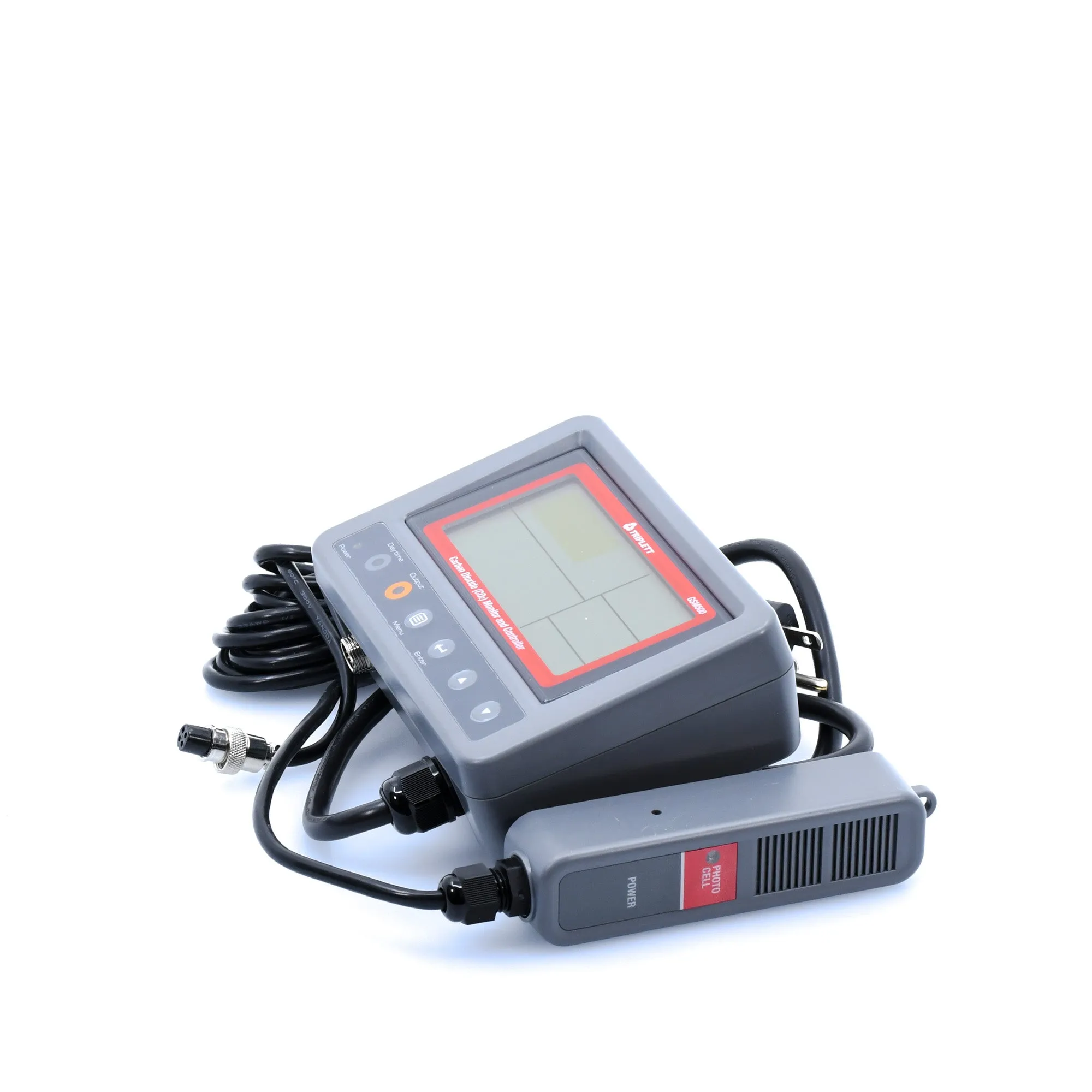

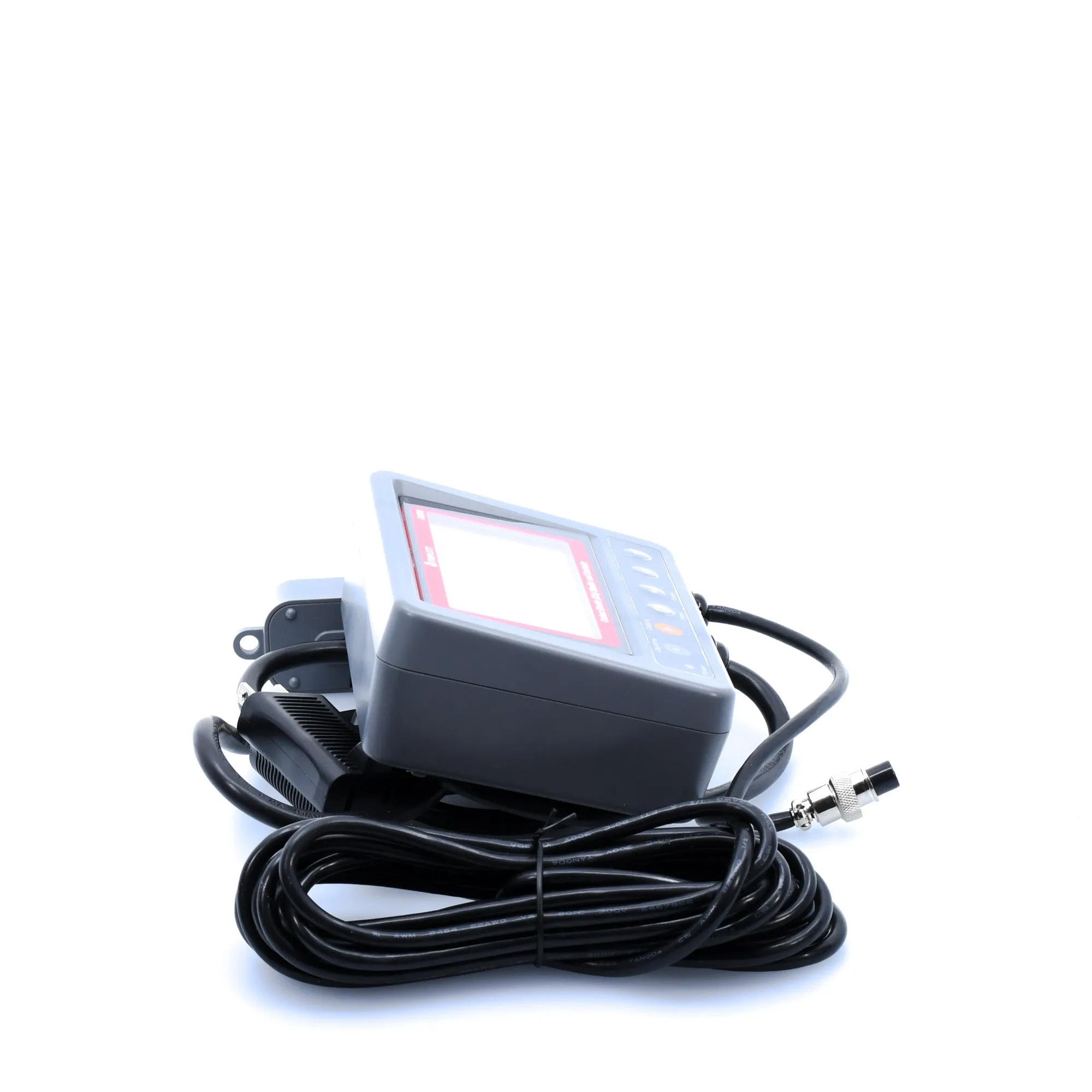

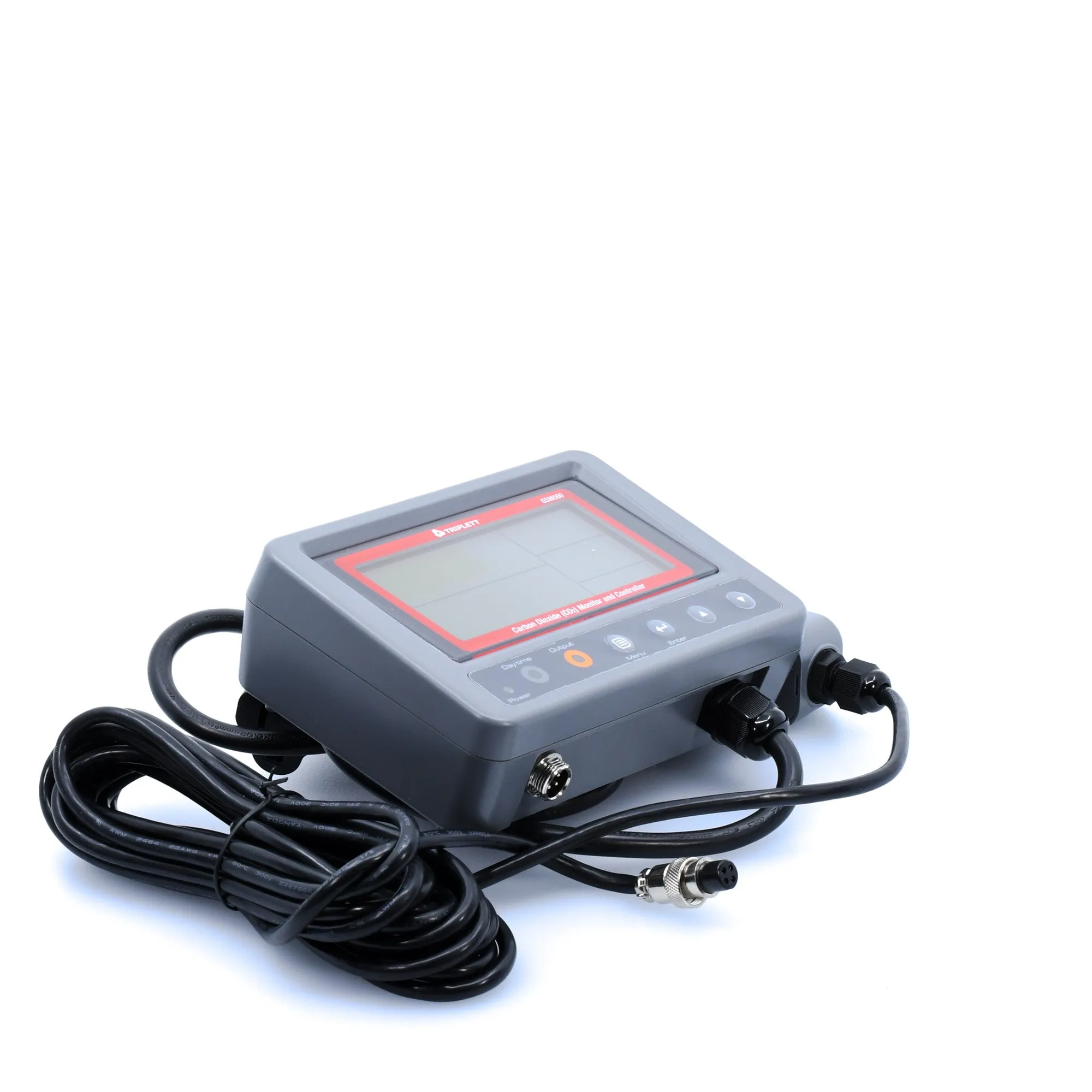

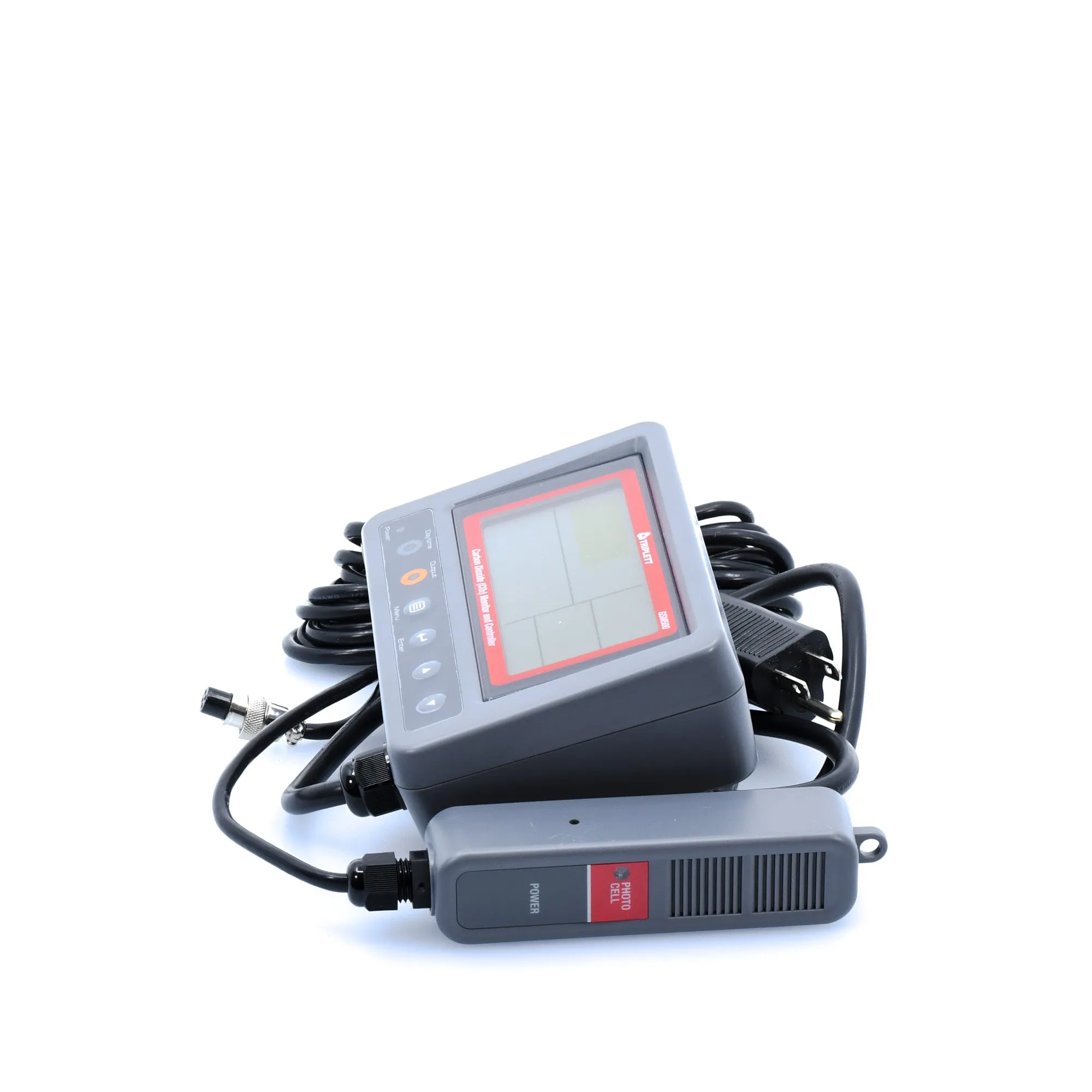

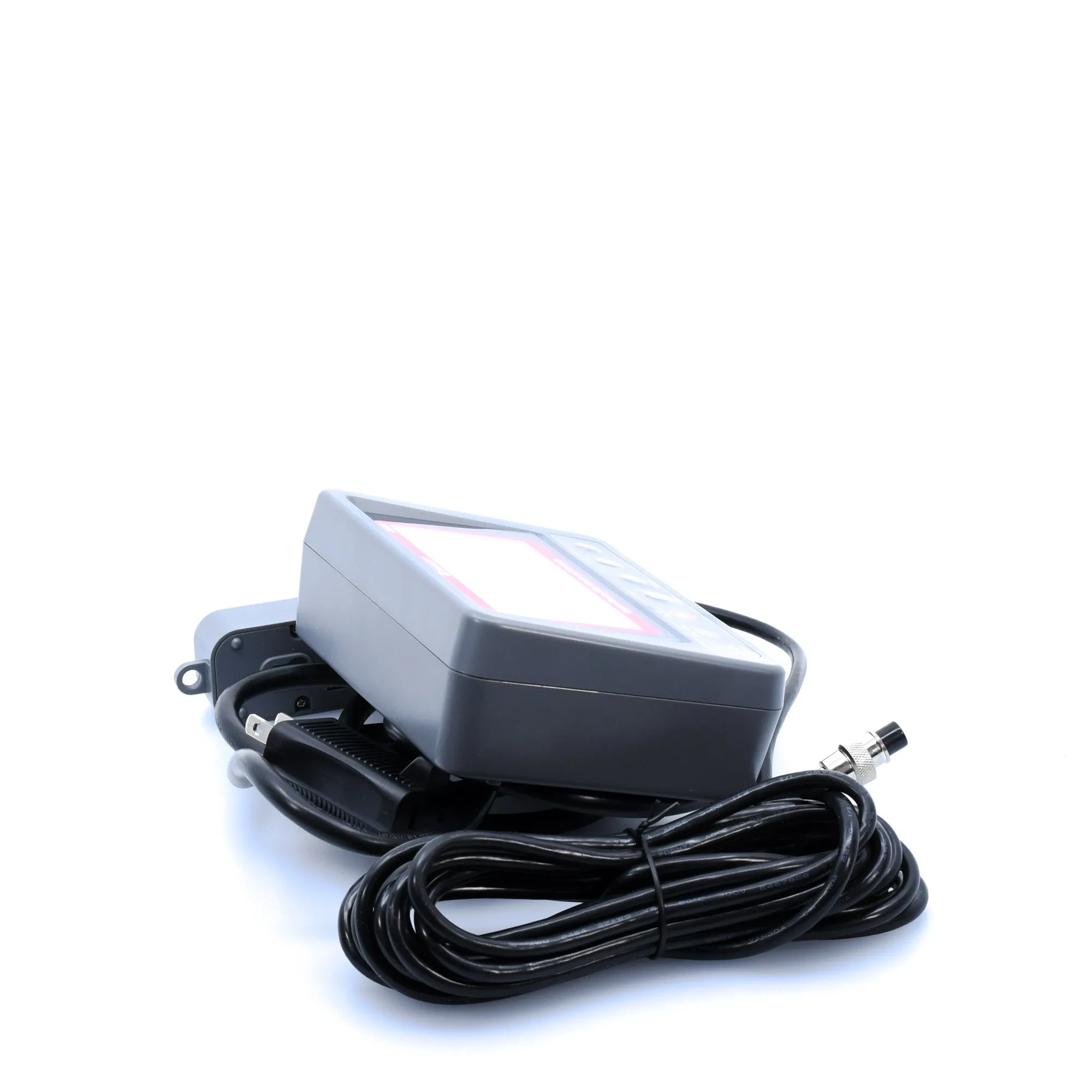

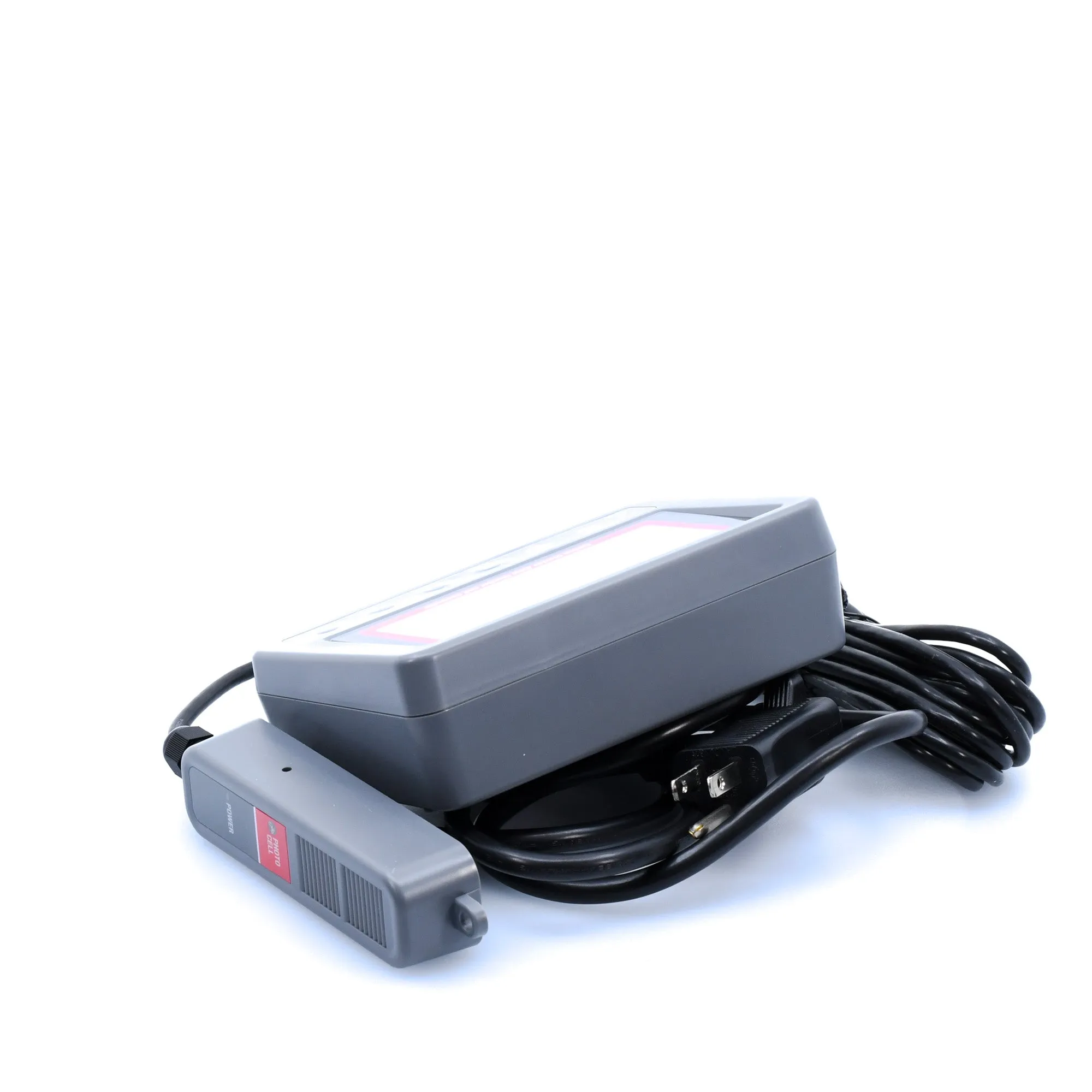

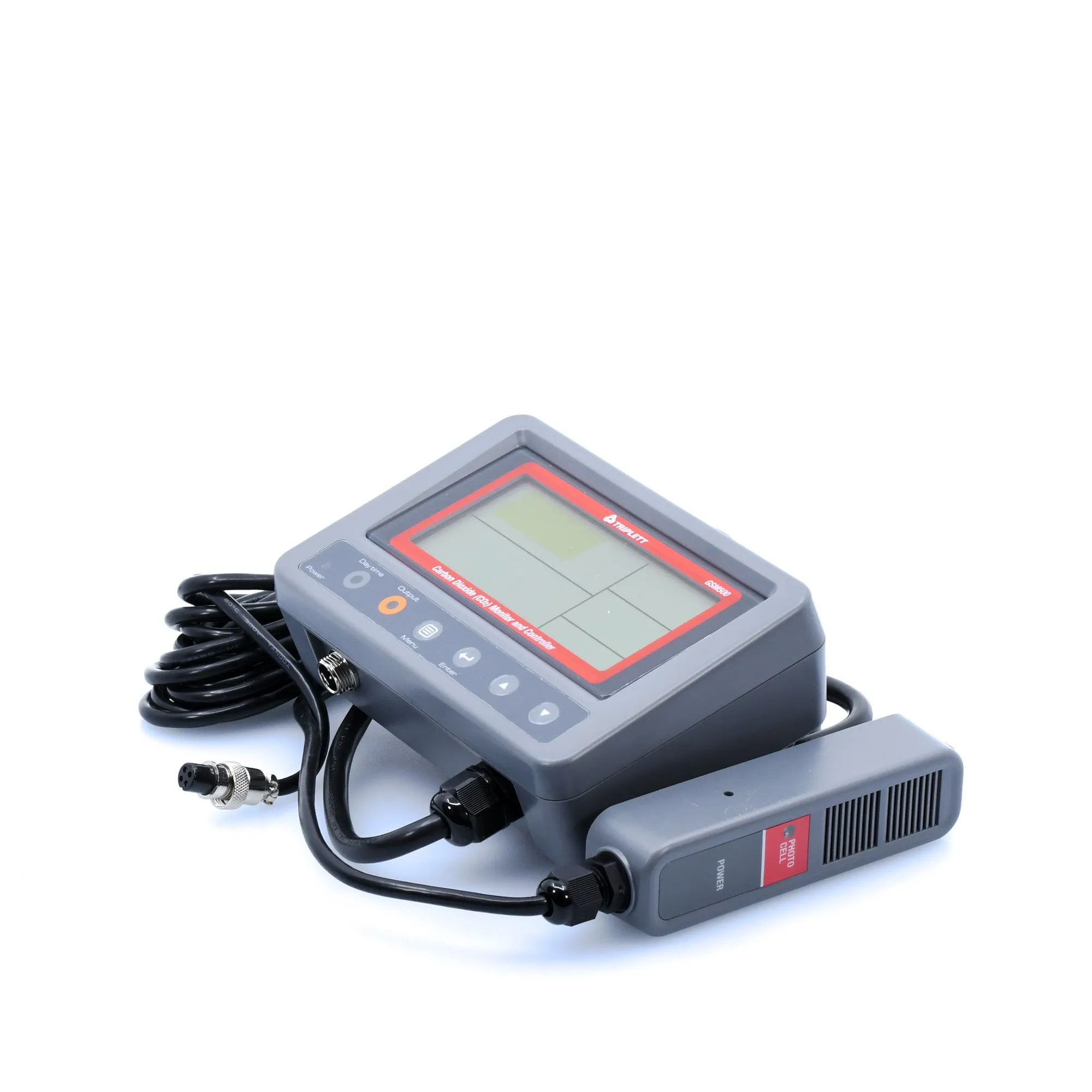

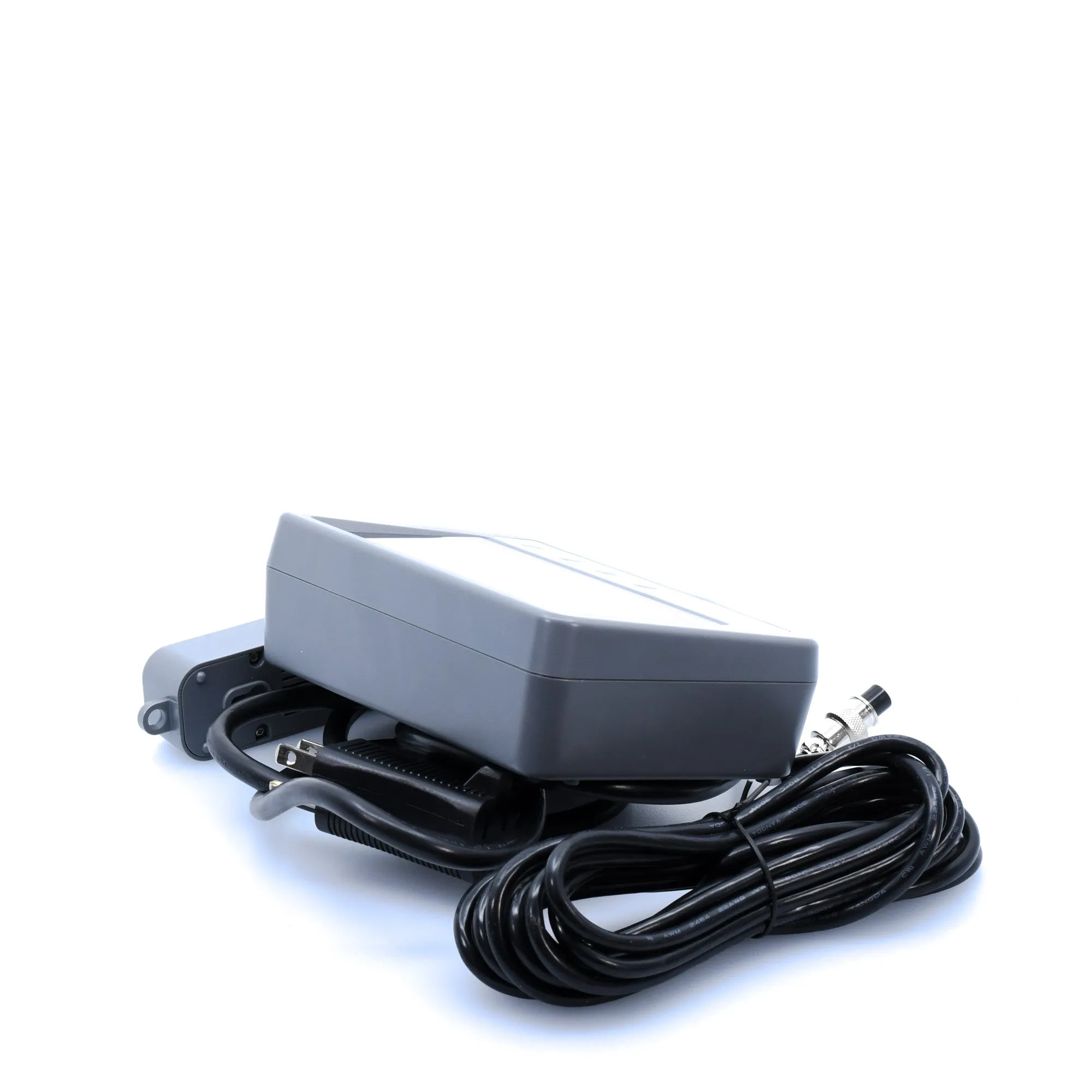

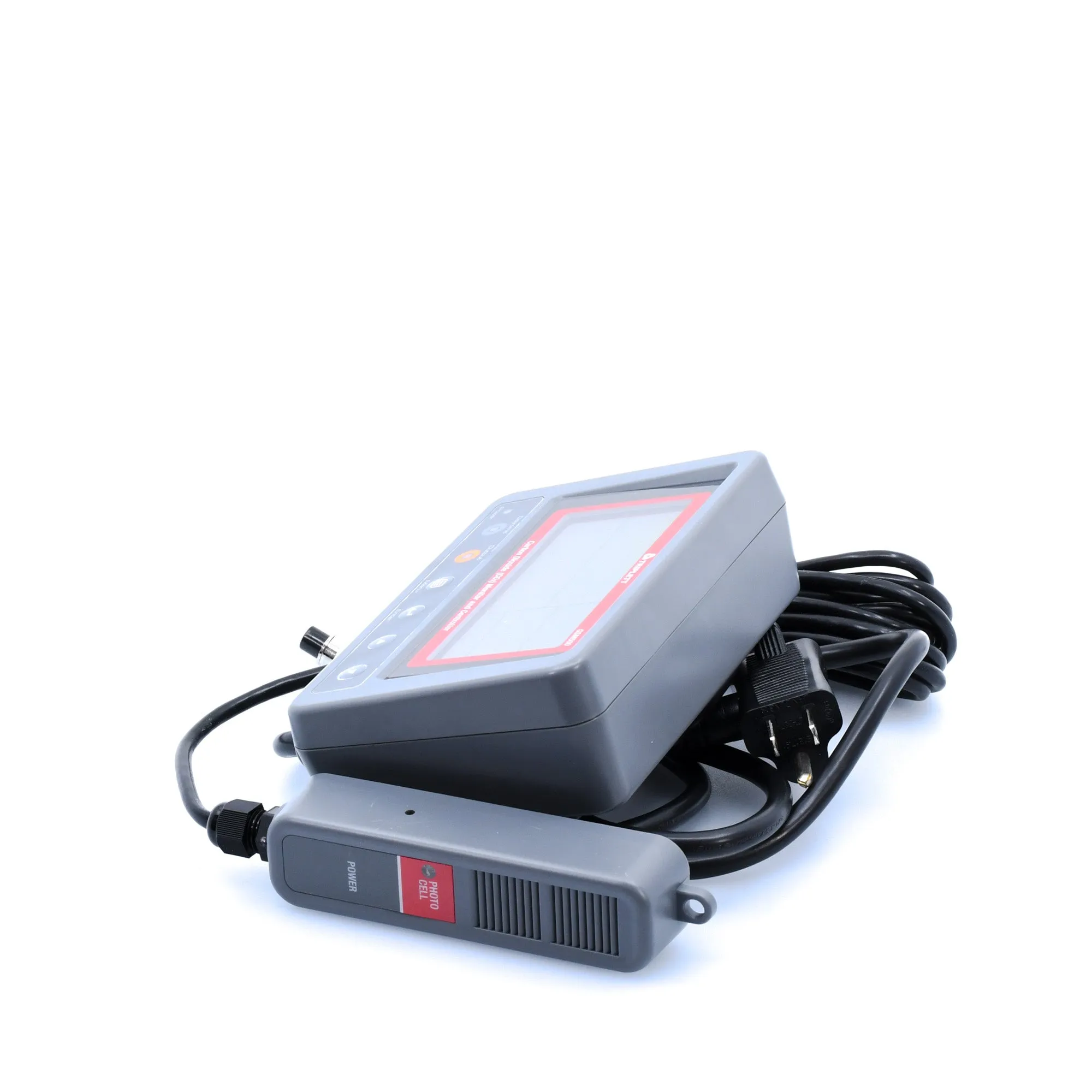

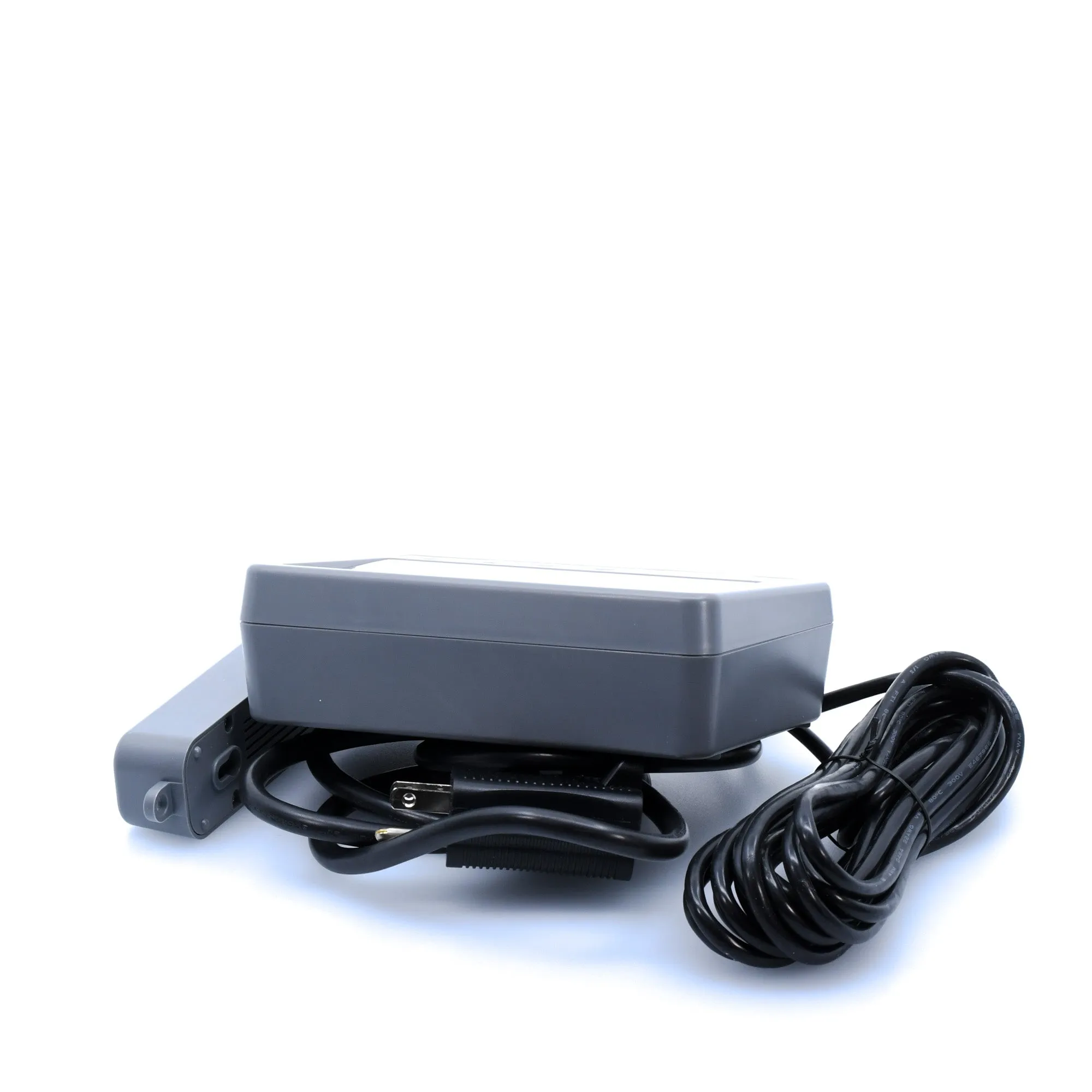

- Includes Sensor with 14.8ft (4.5m) cable, AC power cord with controller piggyback plug, mounting screws, and tape for mounting the sensor probe
- 1 year warranty
Specification
| GSM500 | |
| Carbon Dioxide (CO2) | 0 to 5000ppm |
| Accuracy | ±50ppm or 5% of reading |
| Warm-up Time | 30 seconds |
| Calibration | Calibrate in fresh air (~400ppm) |
| CO2 Alarm | Audible |
| Controller Output Load | 120VAC, 10A |
| Power | 120VAC |
| Meter Dimensions | 6.2 x 4.2 x 2" (158 x 106 x 50mm) |
| Sensor Dimensions | 4.9 x 1.3 x 1" (124 x 33 x 26mm) |
| Weight | 1.5lbs (700g) |
Downloads
FAQs
-
Q. Do you offer a N.I.S.T. Certification with this product?
A. Unfortunately we do not offer the product with N.I.S.T. certification
