Product Details
＋
Product Features

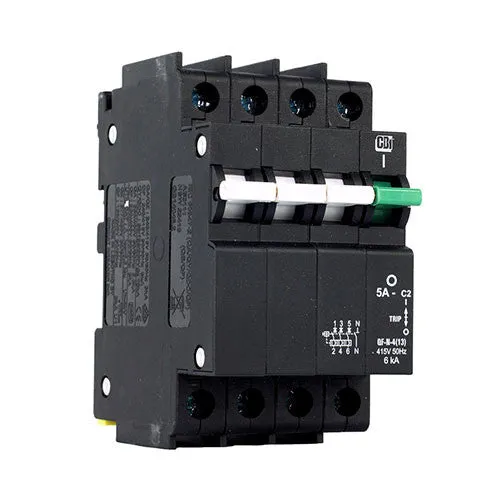

- AC circuit breaker
- Hydraulic-magnetic technology
- Ratings available in 5A to 25A
- Can be switched on immediately after tripping
- Trip indication with mid-trip position
- Suitable to use for electrical isolation
- Shell designed for easier installation onto busbar
Application
- AC branch circuit protection
- Telecom / datacom equipment
- Lighting control
- UPS equipment
- Alternative energy equipment
- Mobile power generation equipment
- Railway signaling equipment
- Residential equipment
- Industrial equipment
Safety Features
- Miniture Circuit Breakers should be installed by a trained professional to prevent any damages or injury caused by incorrect installation
Technical Specifications
| Colour: | Black |
| Handle Colour: | White and Green Neutral Handle |
| Mounting Type: | Dual Mount |
| Number of Modules: | 4 |
| Poles: | 3 Neutral |
| Curve: | 2 |
| Protection Type: | Overload and short circuit protection |
| Escutcheon: | 57mm |
| Current: | Ratings available in 5A to 25A |
| kA Rating: | 6kA |
| Height: | 97.2mm |
| Width: | 52mm |
| Weight: | 408g |
Technical Documents
| Technical Document: |
