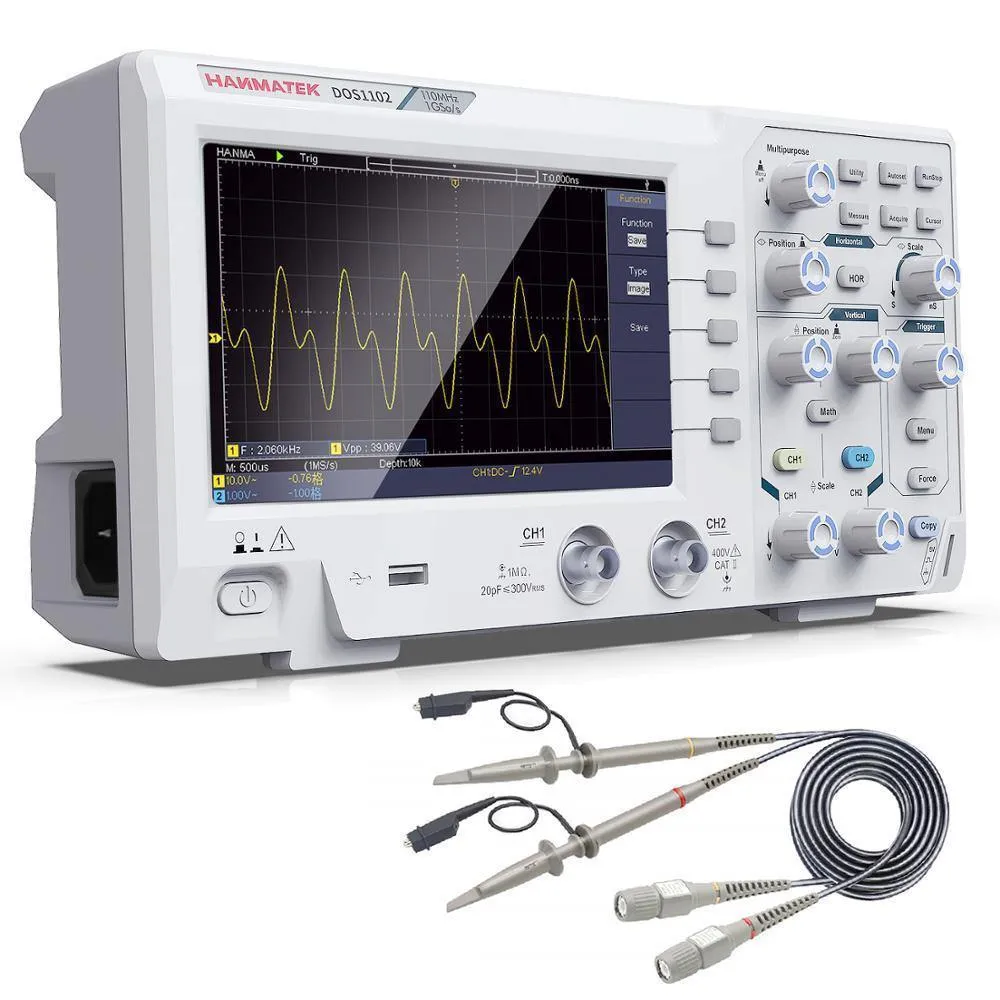

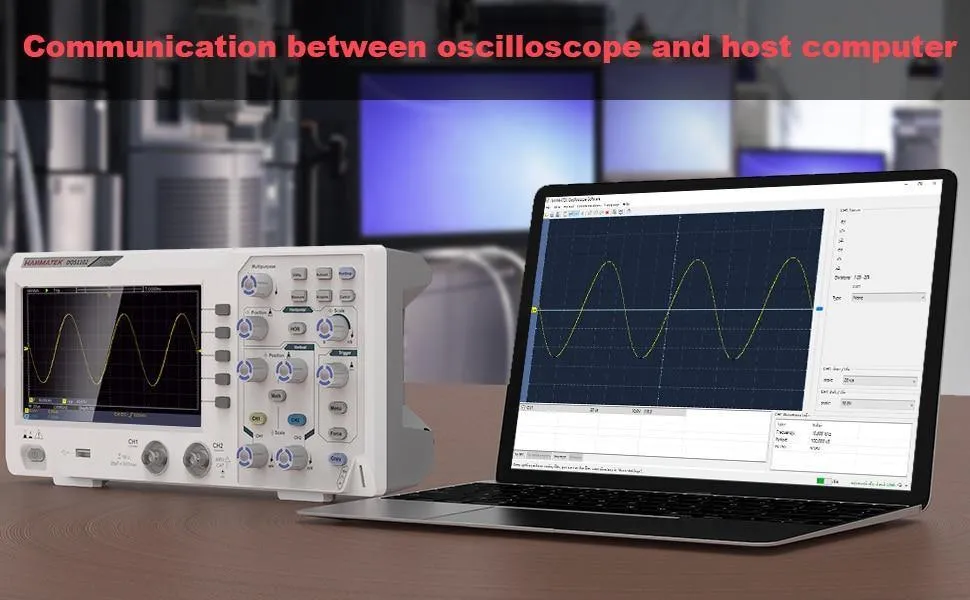

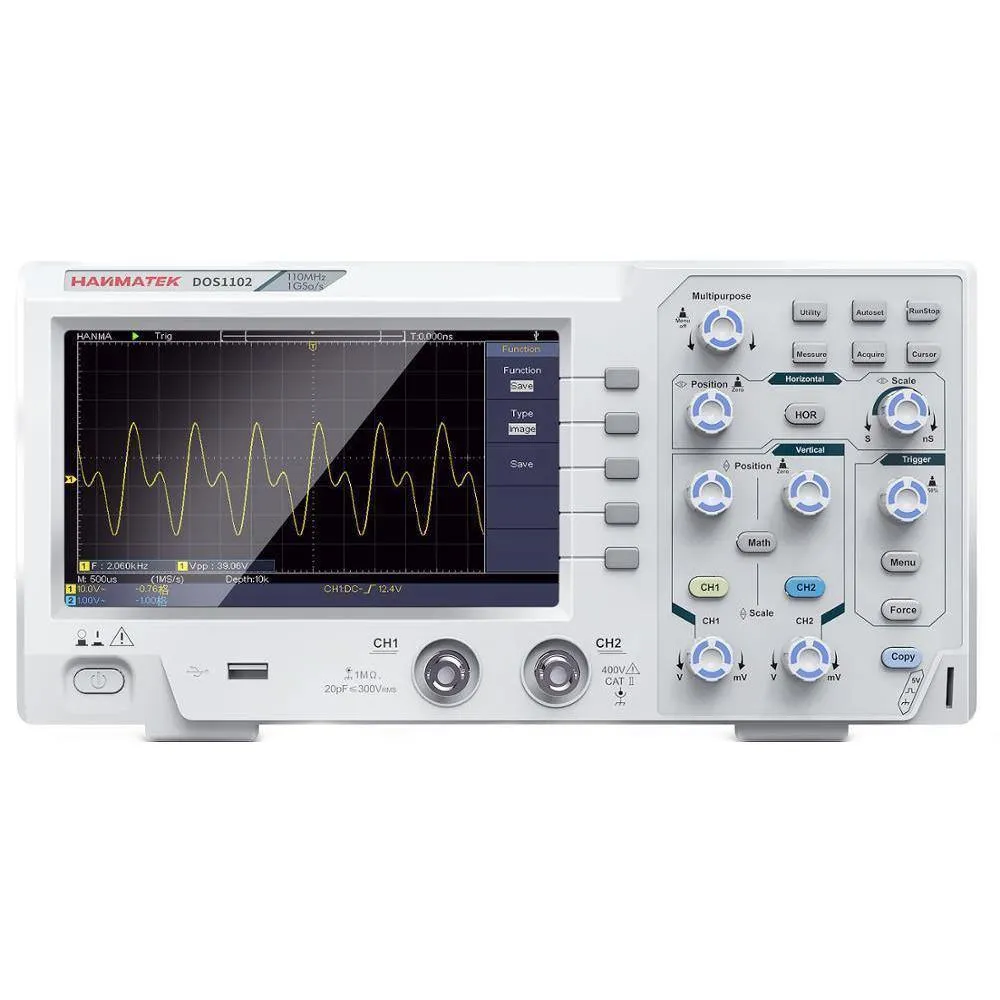

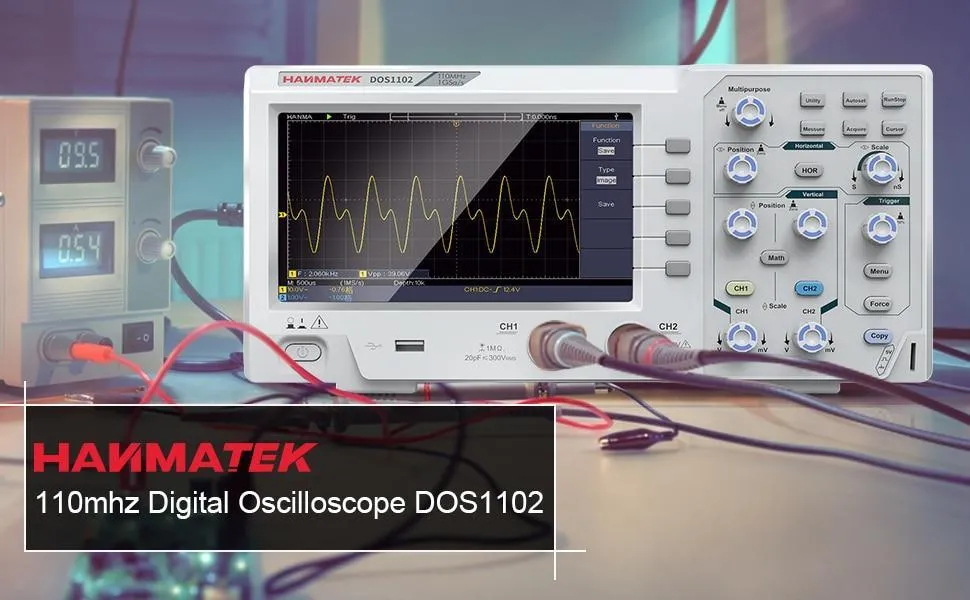

The Hanmatek DOS1102 is a great digital storage oscilloscope for those looking diagnose and measure a wide range of signals and devices, ideal for fault finding and diagnosis work. The integrated LCD screen clearly shows your measurements, or connect via USB to your PC for recording large screen viewing of your data collection.

Use our info link at the top of the description to get the latest software.

We will send you links for the latest software upon purchase.

Features:

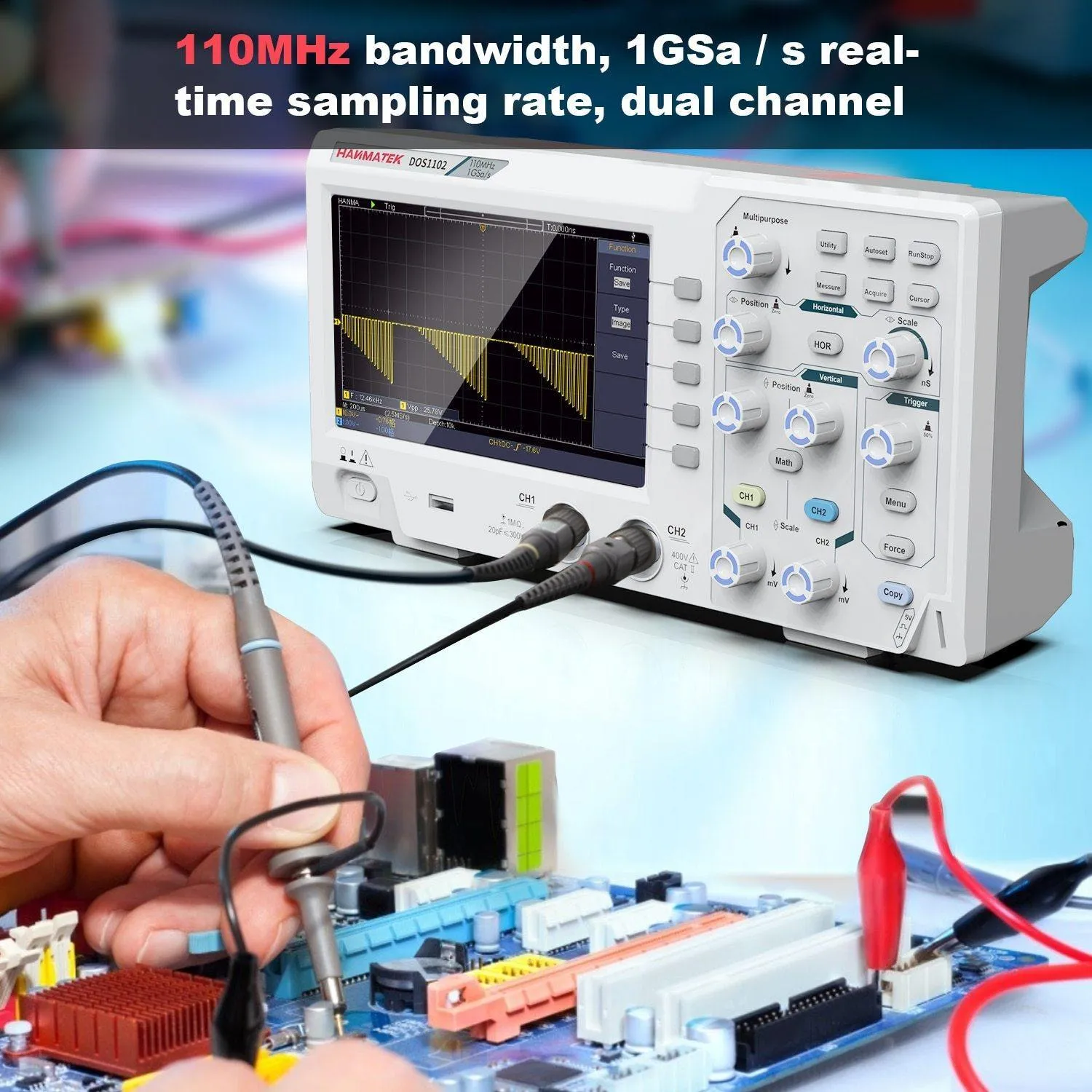

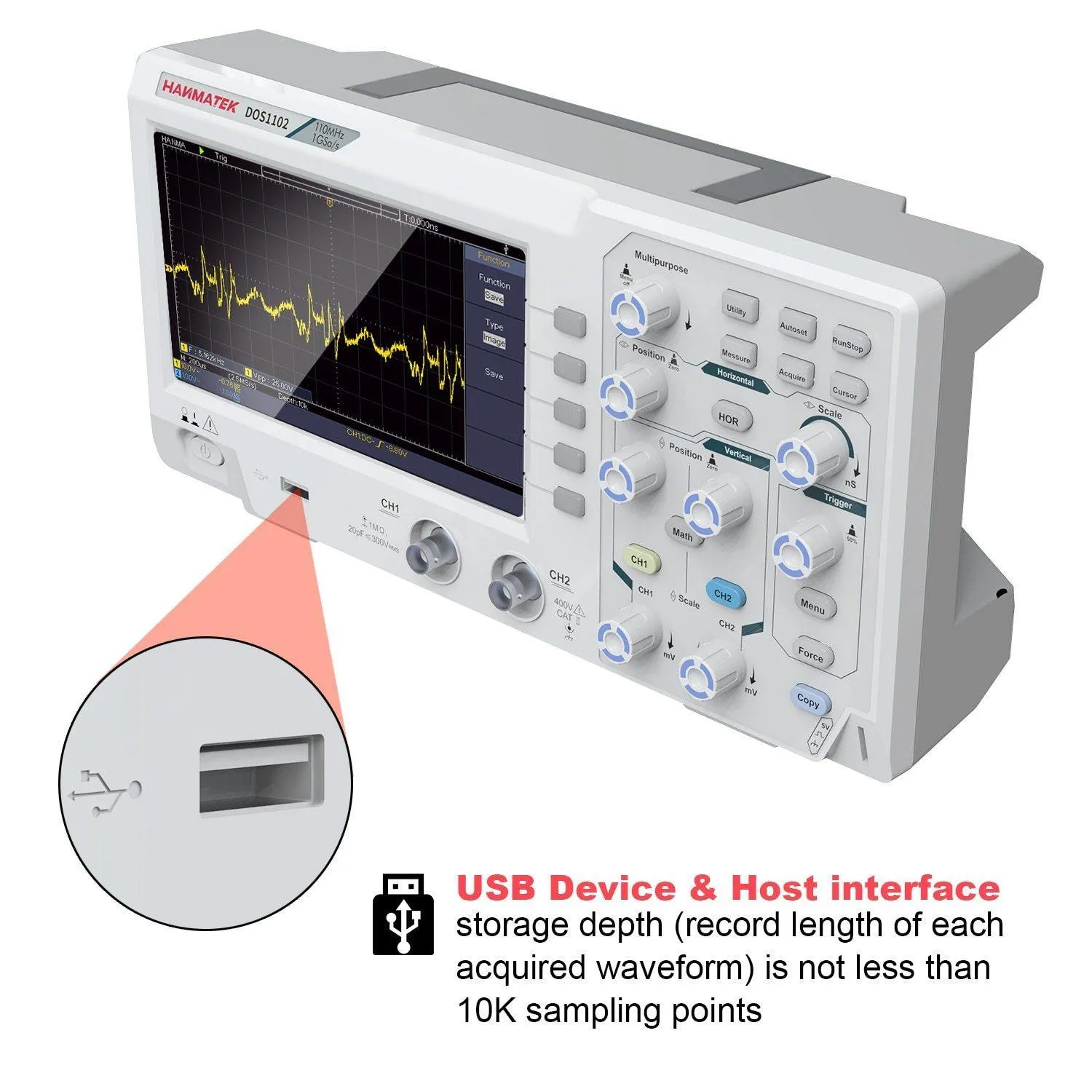

• 110MHz bandwidth, 1GSa / s real-time sampling rate, dual channel, 2ns / div ～ 1000s / div time base range; storage depth (record length of each acquired waveform) is not less than 10K sampling points; stored waveform is not less 16 groups; with U disk storage function; USB Device & Host interface.

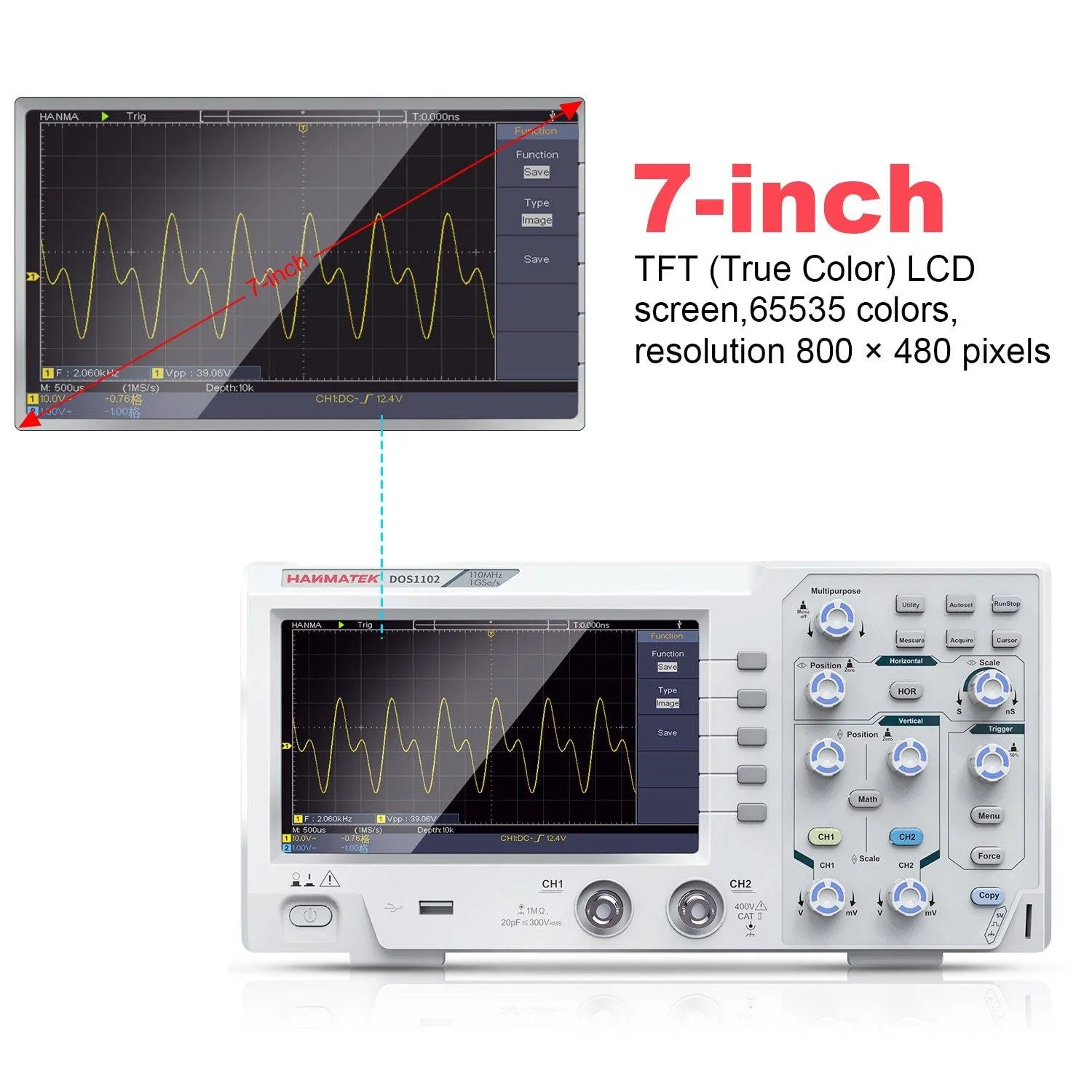

• 7 inch 800*480 LCD screen.

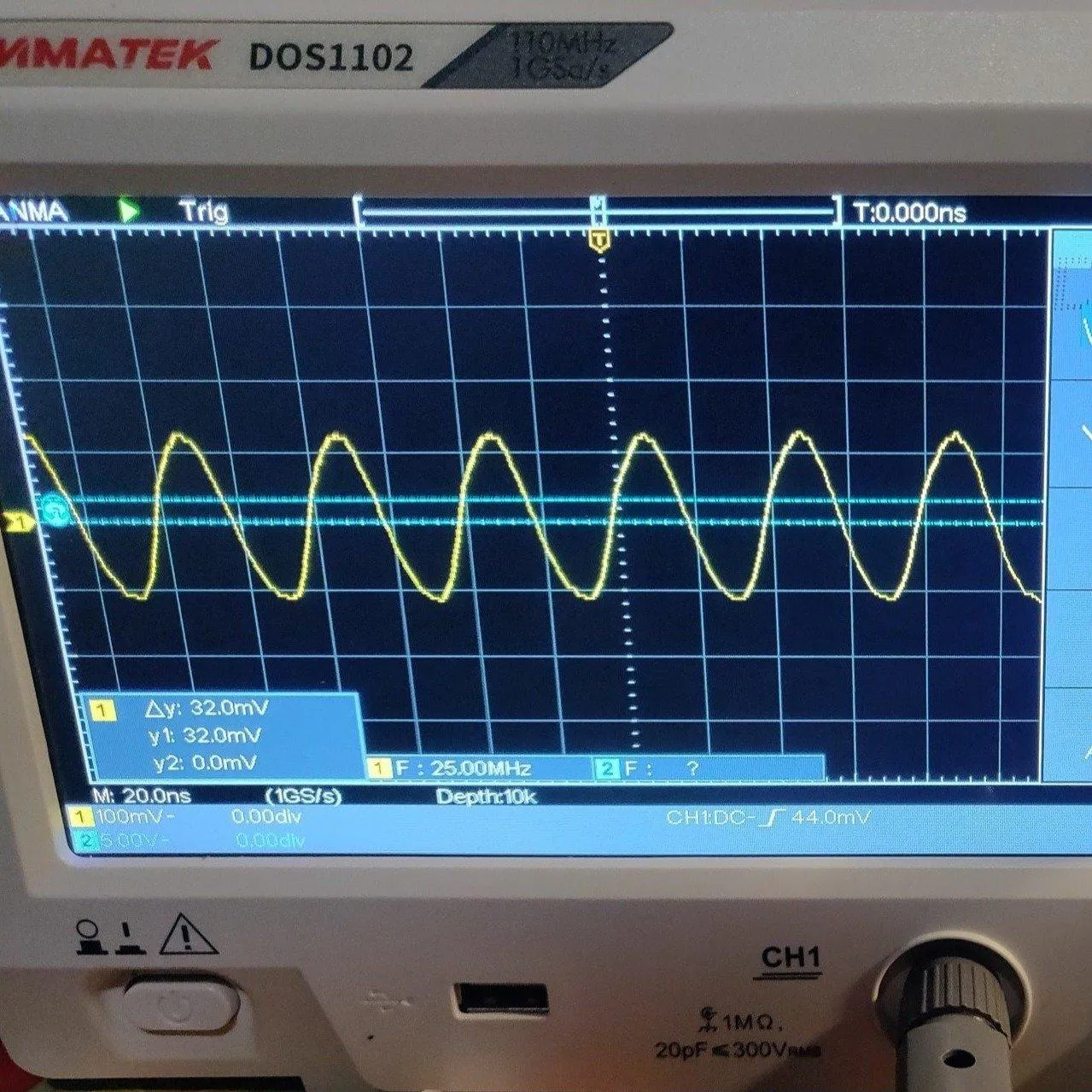

• Support cursor measurement, cursor mode is not less than voltage difference (△ V), time difference (△ T), time difference & voltage difference ( △ V), four modes of automatic cursor
• With automatic range function, support horizontal, vertical, single waveform / multi-waveform tracking; probe attenuation multiples of 1X, 10X, 100X, 1000X, four kinds
• Built-in 6-bit hardware frequency meter, which can measure 2Hz ~ 20MHz; with current measurement function, measurement range: 100.0mA / V ~ 1KA / V

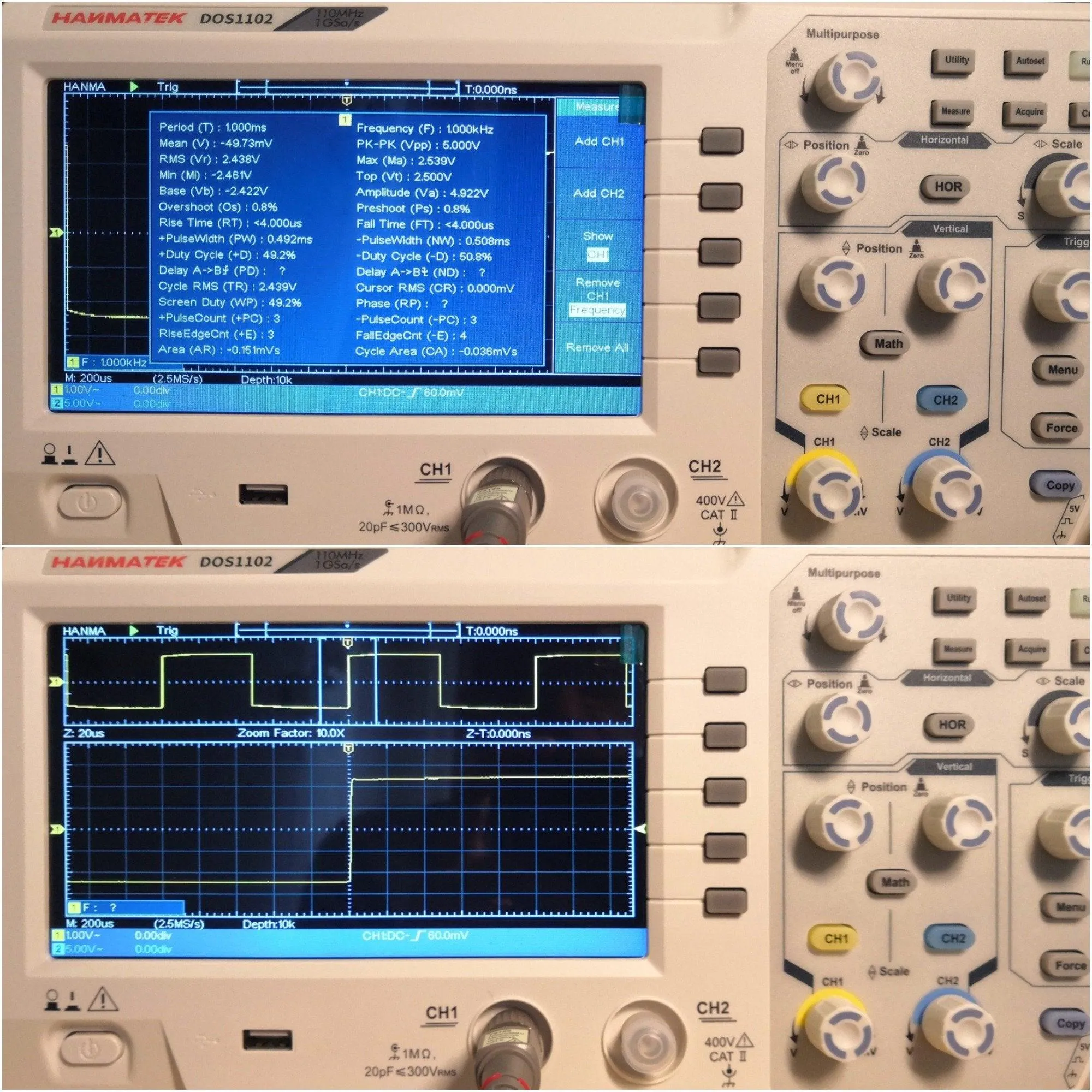

• 30 kinds of automatic measurement functions.

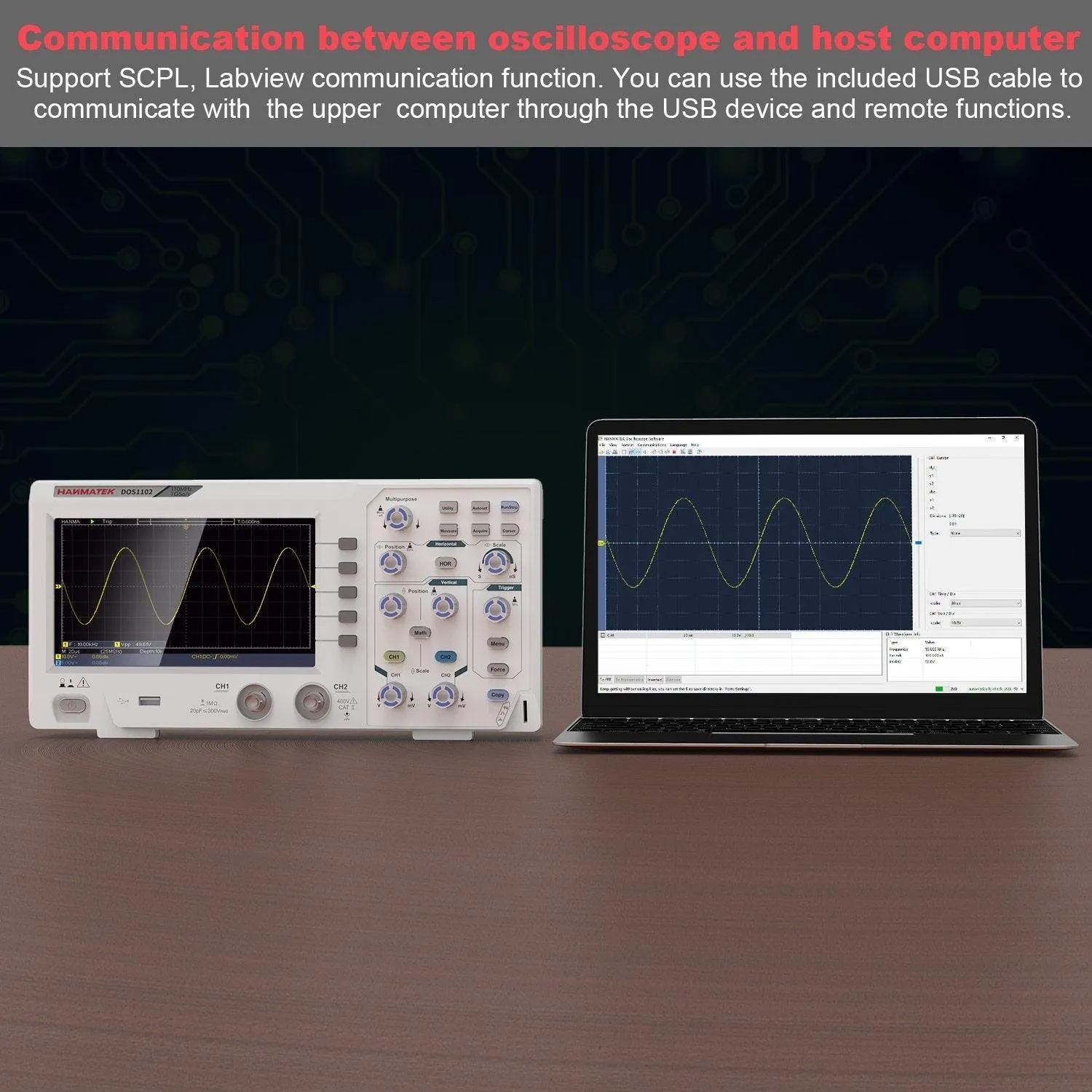

• Support LABVIEW communication, support secondary development.

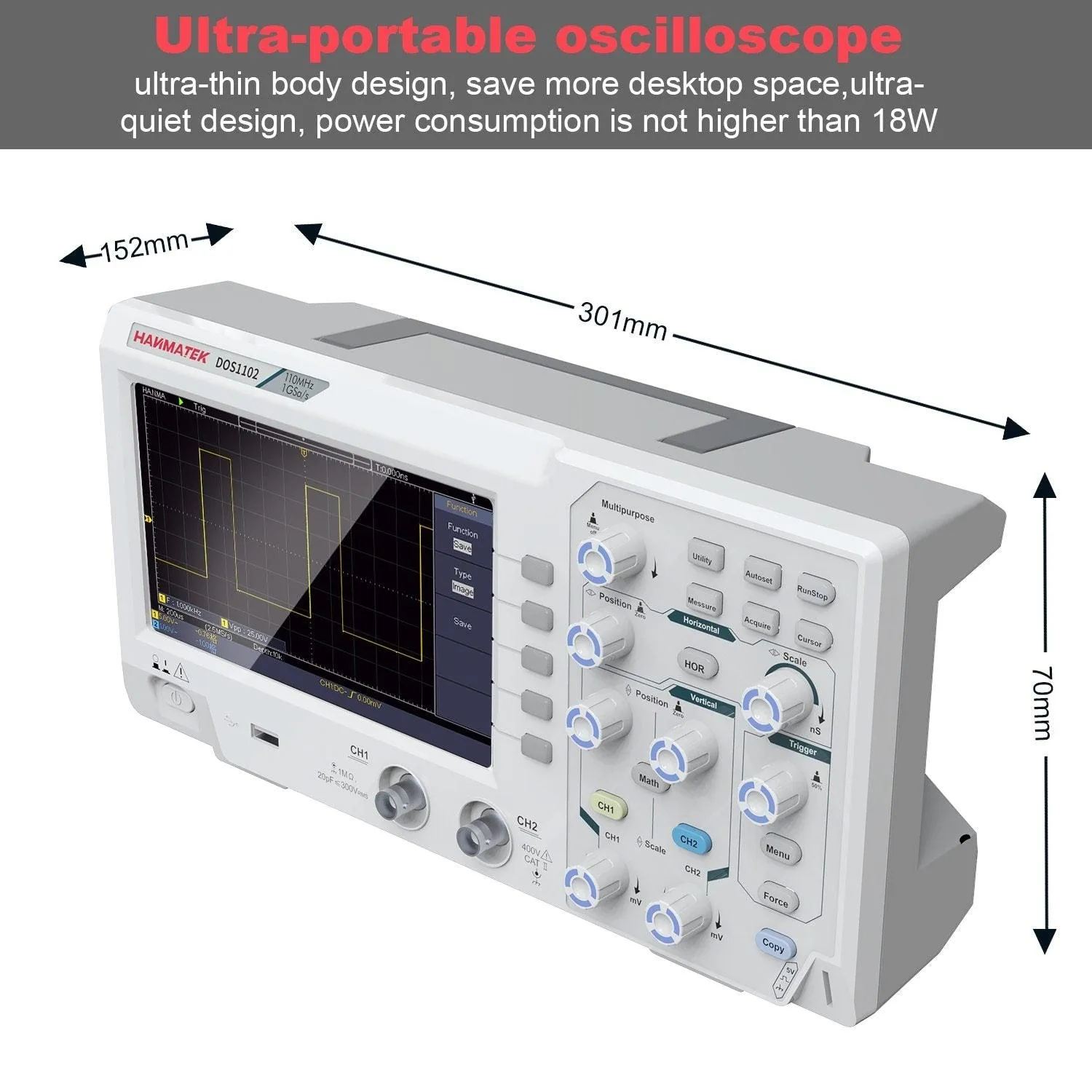

• Ultra-portable oscilloscope with a volume of 301 x 152 x 70 mm, ultra-thin body design, thickness of 70 mm, weight of 1.1 kg, saving more desktop space, ultra-quiet design, power consumption not higher than 18W

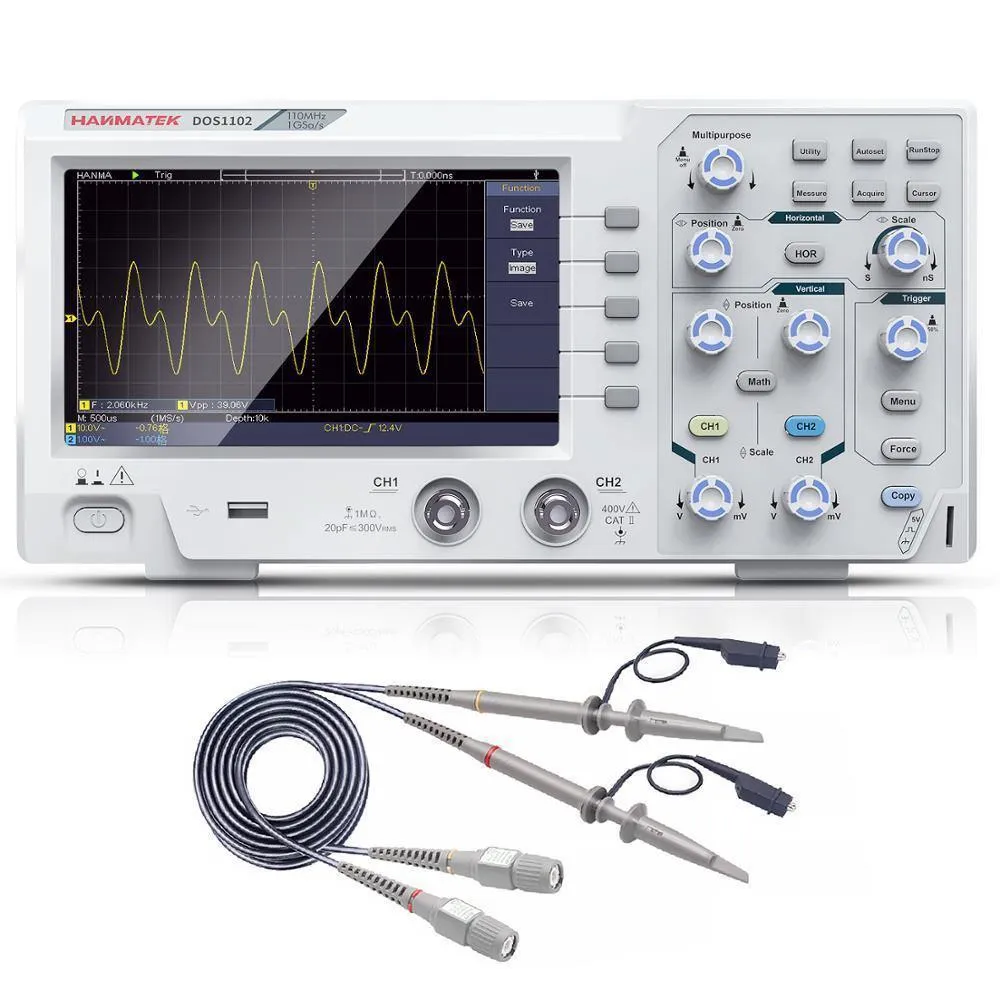

• Package included:1 x Oscilloscope, 1 x Oscilloscope Kit
• Model Number: DOS1102
• Languages: Chinese, English, German, French, Italian, Spanish, Japanese, Russian

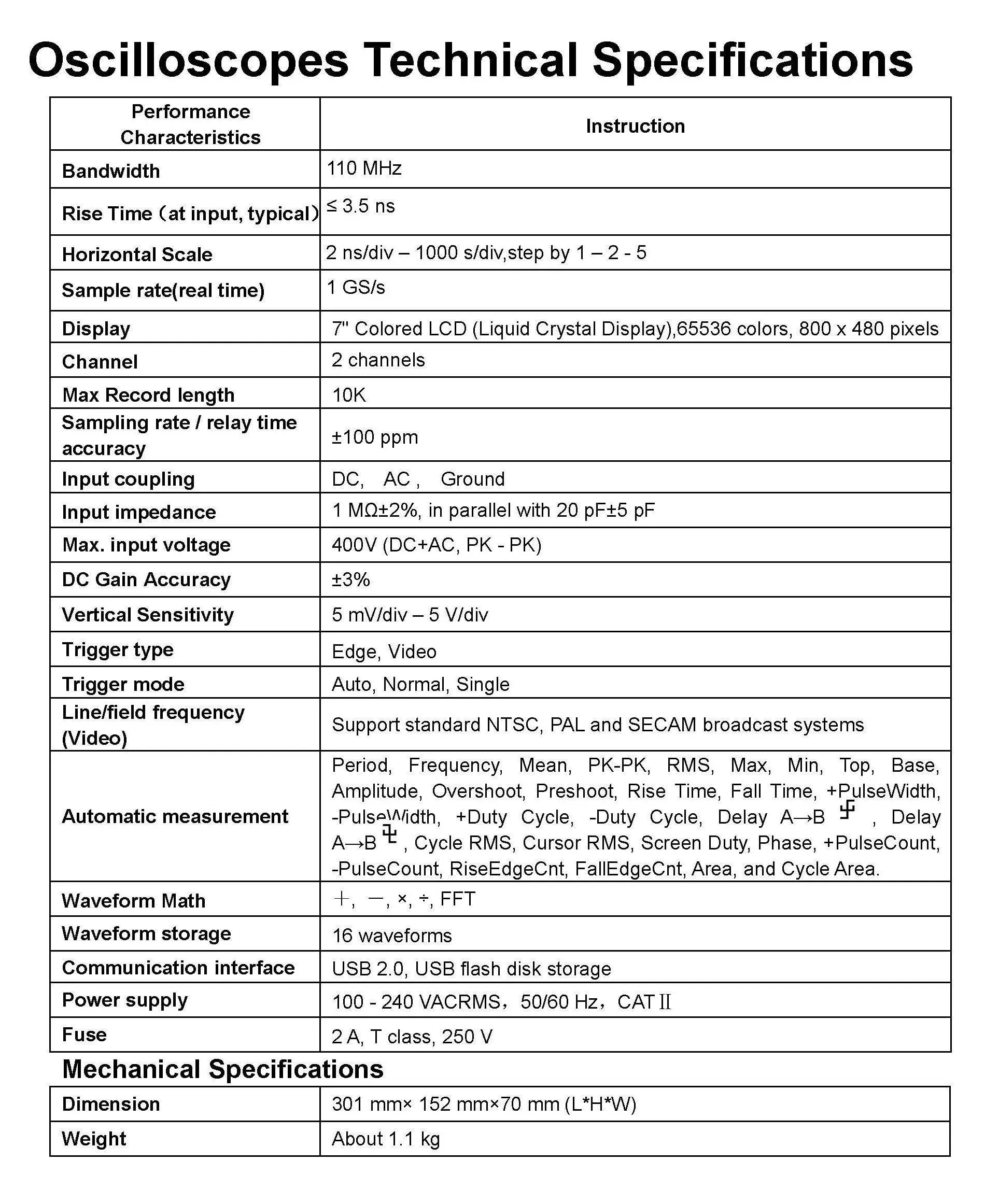

Specifications:
