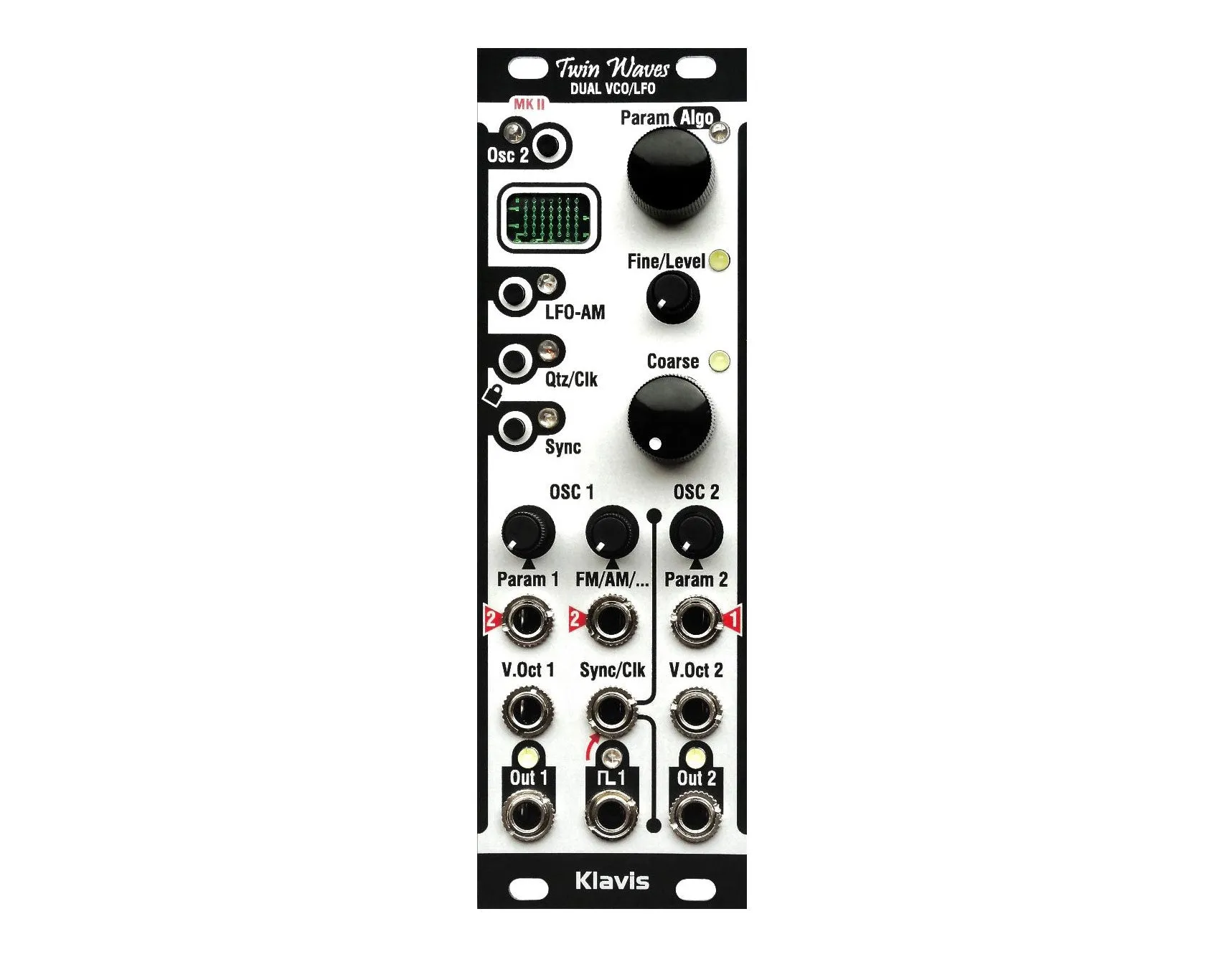

The Twin Waves MKII evolution brings a redesigned layout, additional knobs for more hands-on fun and semi-modular cross-patching between sections. All of the original features are present in 8HP: a top selection of synthesis techniques, each with their key parameter directly at hand, enriched by a full set of complementary features. More than ever the Twin Waves is versatility at its best.

• Two oscillators independently set as VCO, LFO or random
• Features in VCO mode:
• V/Oct tracking over 10 octaves
• Through zero and linear FM
• Sub-octave output
• Hard & soft synchronization
• VCA control and CV algorithm selection

• Quantizer with various scales

• Algorithm-based synthesis to choose among:

• Wave shaping
• Phase modulation
• Phase positioning of multiple waves
• 5 stacked oscillators with unison detune
• Self-sync with phantom oscillator
• Additive synthesis (7 waves)
• Variable bit reduction (bit-crushing)
• Ring modulator with its own 2nd oscillator

• Noise with LPF, BPF, or resonant VCFs

• Features in LFO mode:

• Simultaneous signal and cycle trigger outputs
• External wave synchronization/restart
• Clock controlled rate with CV multiplier and divider
• CV and knob control of output level
• Algorithm based wave engine with a selection of:
• Wave shaping
• Phase modulation
• Random levels and vectors (also Brownian)

• Randomly spaced/warped triggers and waves

• Display with contextual icons and instant reminder help text

• LEDs indicating potentiometer vs. value matching, switch settings and output signals
• Automatically saved settings for instant recall at power on
• Firmware update via a simple audio file

Fundamental frequency range in VCO mode: 10Hz to 10KHz = over 10 octaves VCO audio range (incl. harmonics): DC to 20KHz LFO frequency range (internal / external clocking): 2 minutes to 2KHz / several days to 2KHz Input and output conversion: 16-bit ADCs, 24-bit 96KHz DACs

Video:

Product Specs

• Item Number: 9328
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Belgium
• MPN: TW2-MSL
• Modular Grid: Eurorack
• Dimensions: 8 HP 21 mm deep
• Power: 52 mA 12V 17 mA -12V 0 mA 5V
