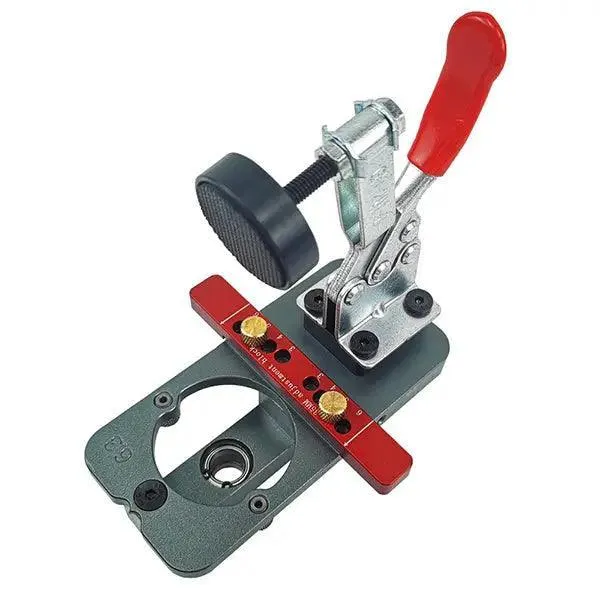

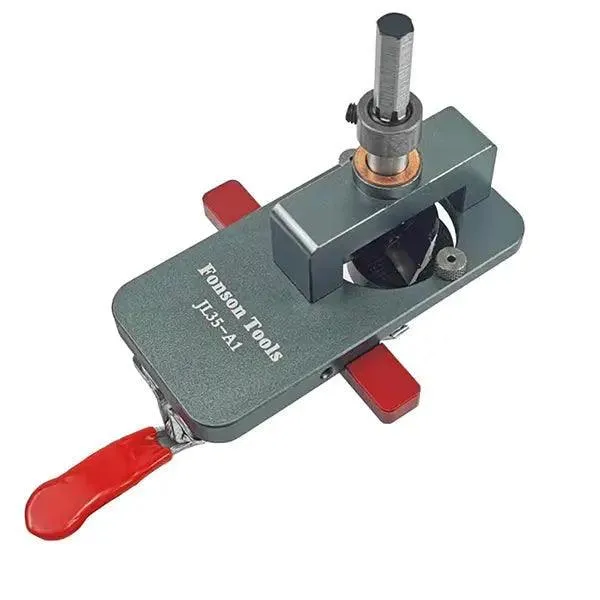

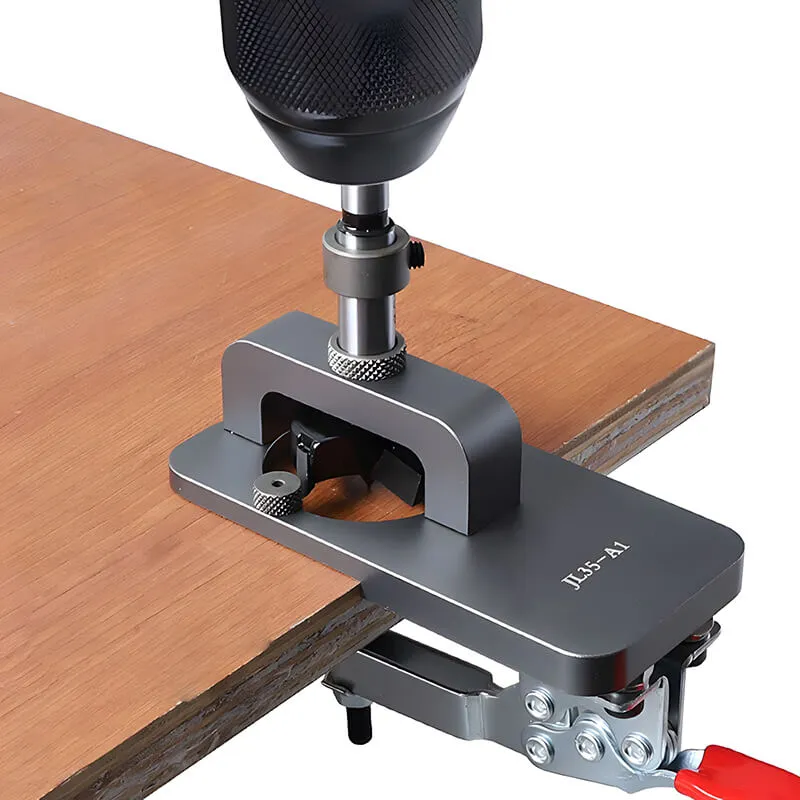

Levoite Concealed Hinge Jig kit can fix and drill precisely. You only need to clamp the clip in the position you want. There is an extra protective shell on the outside, no worry about the safety of sawdust and drill bit, prevents injuries during operation and improves. In a sense, it is more advanced and convenient than other styles.

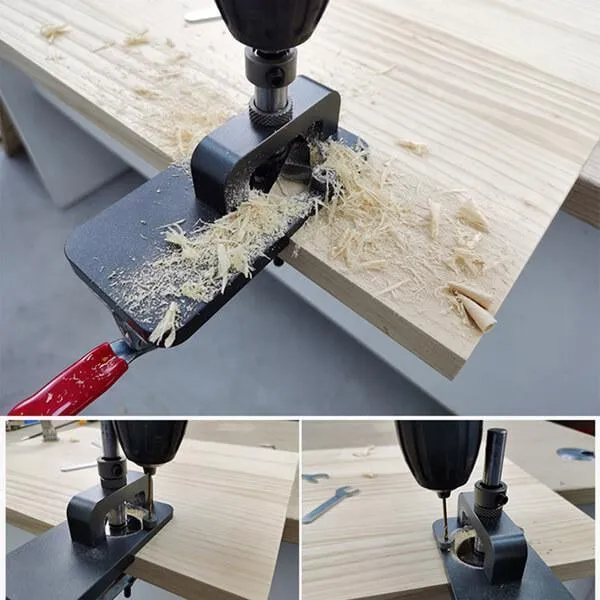

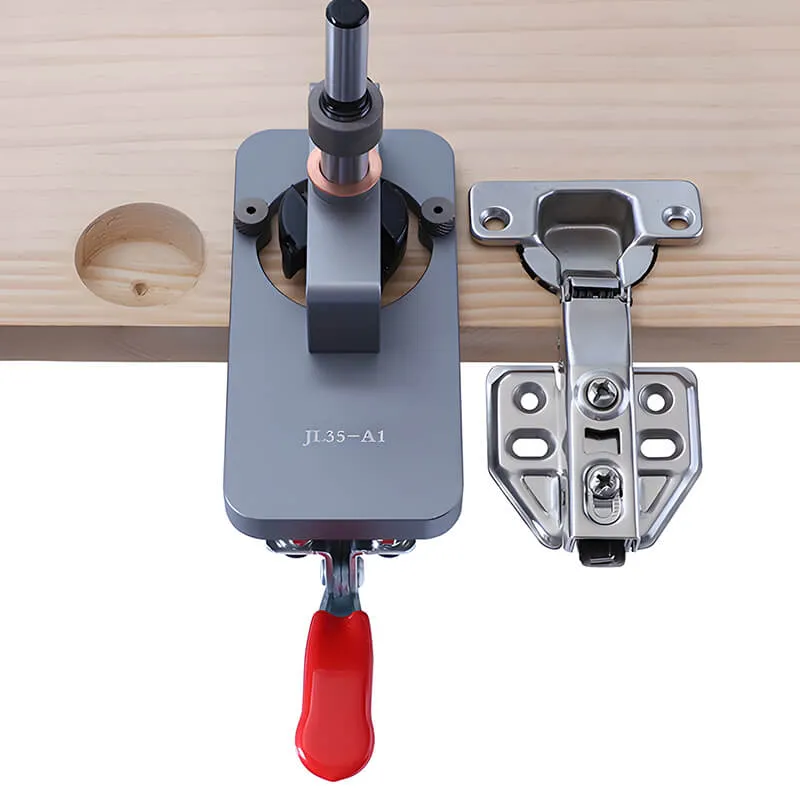

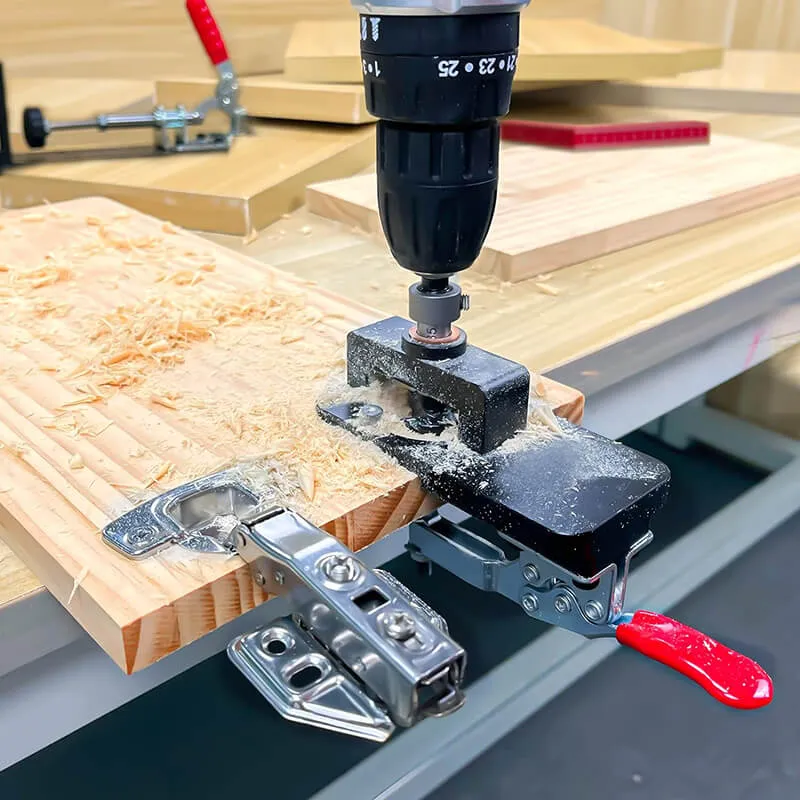

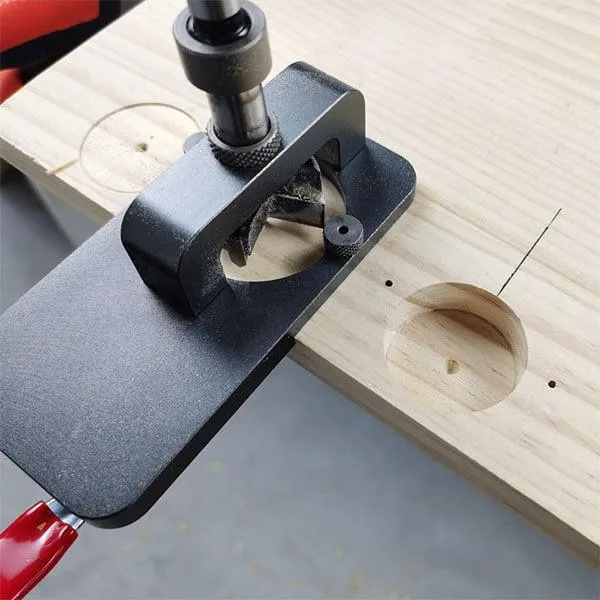

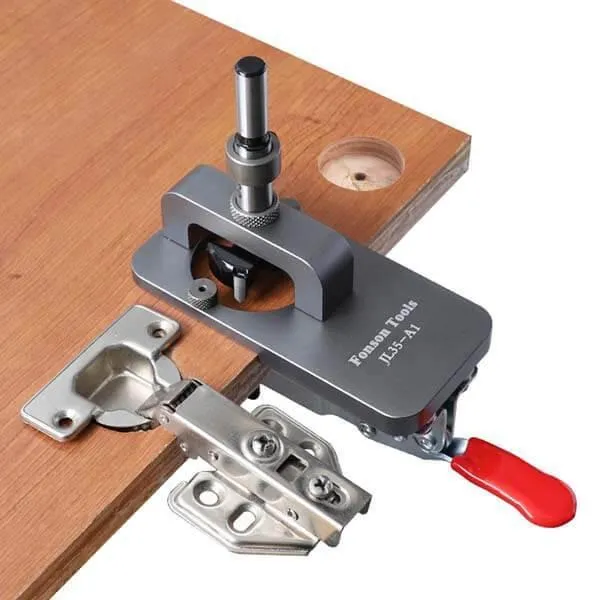

Levoite Concealed Hinge Jig takes the guesswork out of installing cabinet doors using concealed hinges. The Concealed Hinge Jig allows you to drill cup holes for concealed cabinet door hinges, sometimes called Euro Hinges, using just a drill. The jig positions an included carbide-tipped bit exactly at the proper position and offset and drills to the perfect depth every time thanks to adept stop collar.
【 WATCH THE USAGE VIDEO 】
① Standard Version User's Guidance
② Updated Version User's Guidance

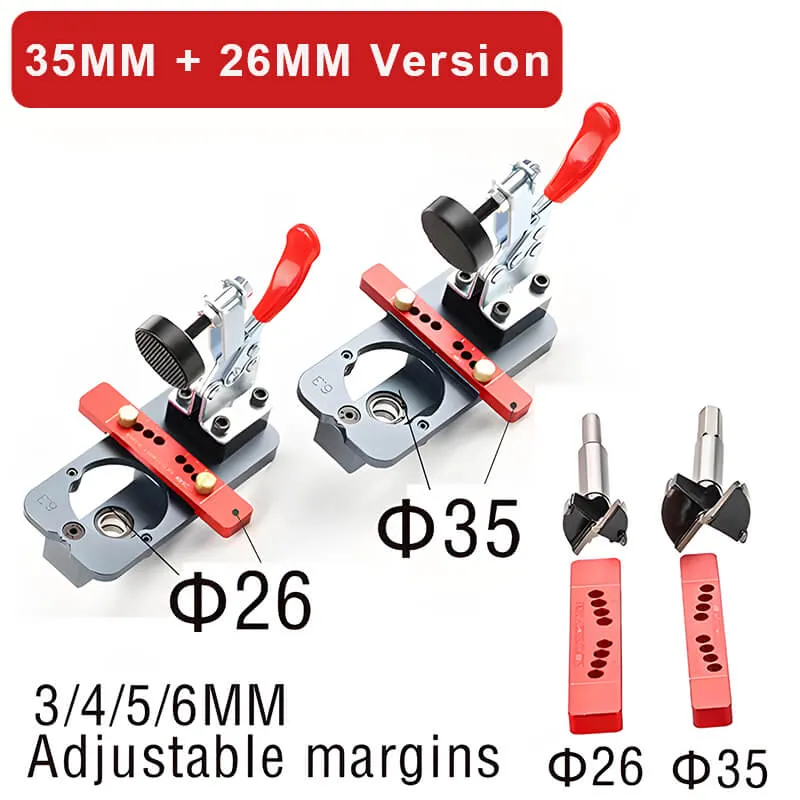

③ 35mm 26mm Version
[ Why Choose Levoite ]

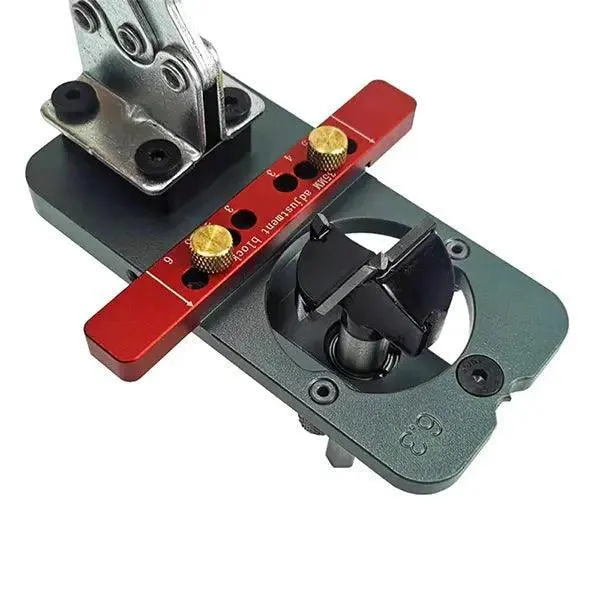

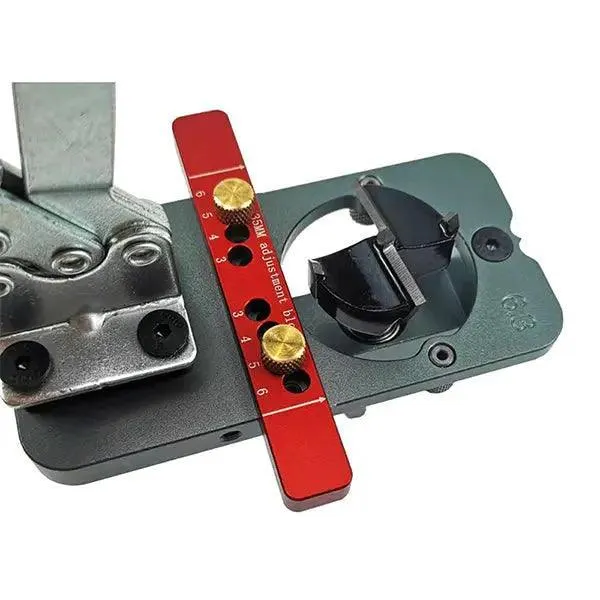

1. Precise reference scales and adjustable construction allow you to punch holes accurately and flexibly.
2. Made of aluminum alloy, precision manufacturing, accurate positioning, convenient operation. It has a long service life.
3. 35mm Metal bushings accurate alignment when drilling hole, easy to adjusting drilling height and hole depth.
4. Efficient and convenient carpenter tools for drawers, doors, cabinets, wardrobes, cabinets, etc.

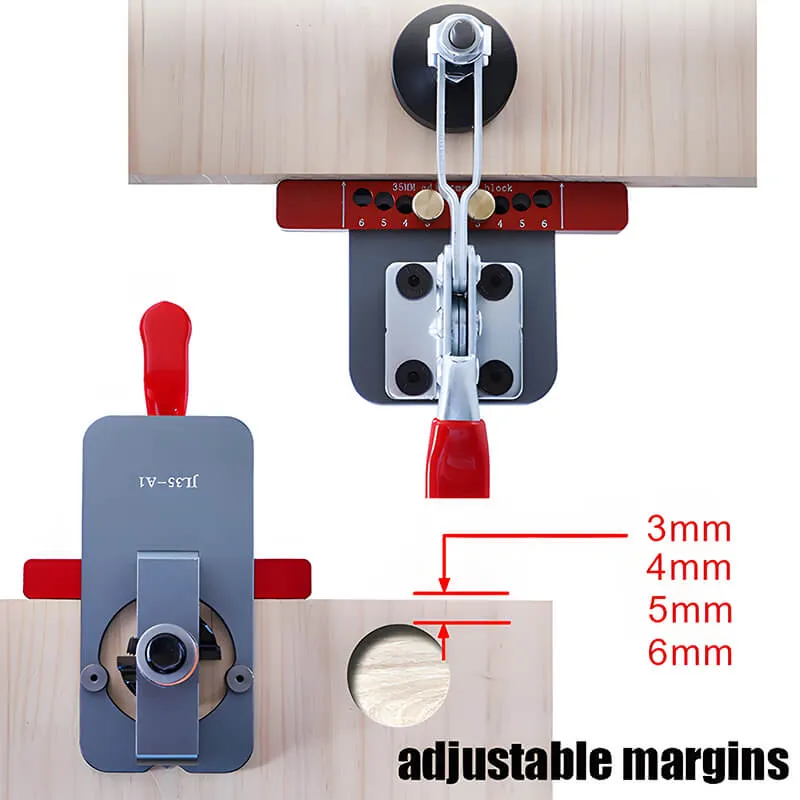

5. Works with 3mm,4mm,5mm,6mm hinge offsets.

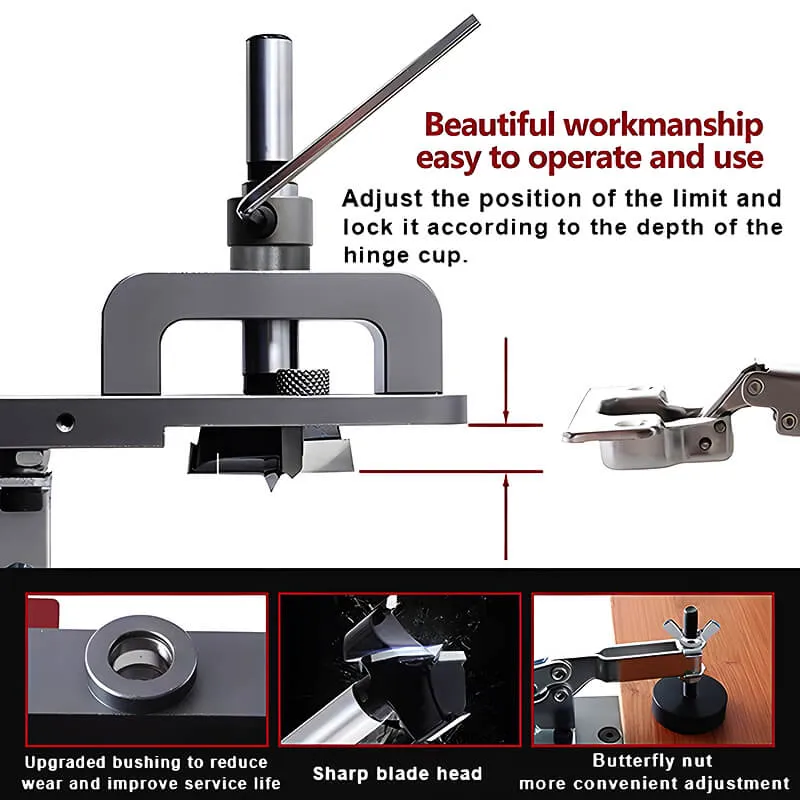

6. Equipped with a limit ring, the drilling depth can be adjusted.

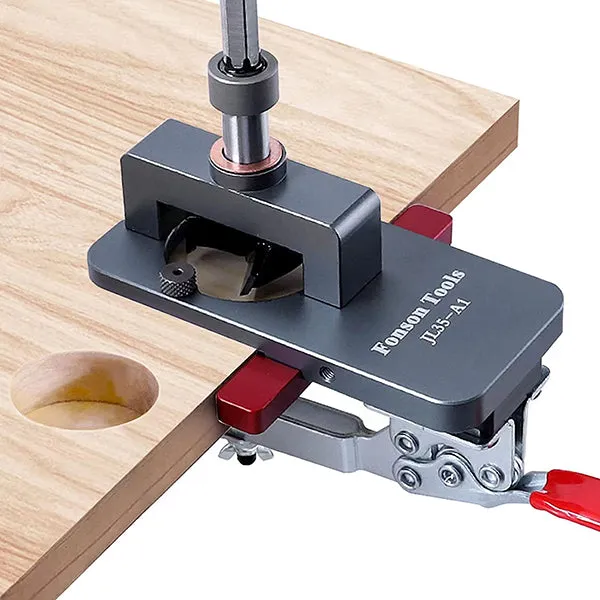

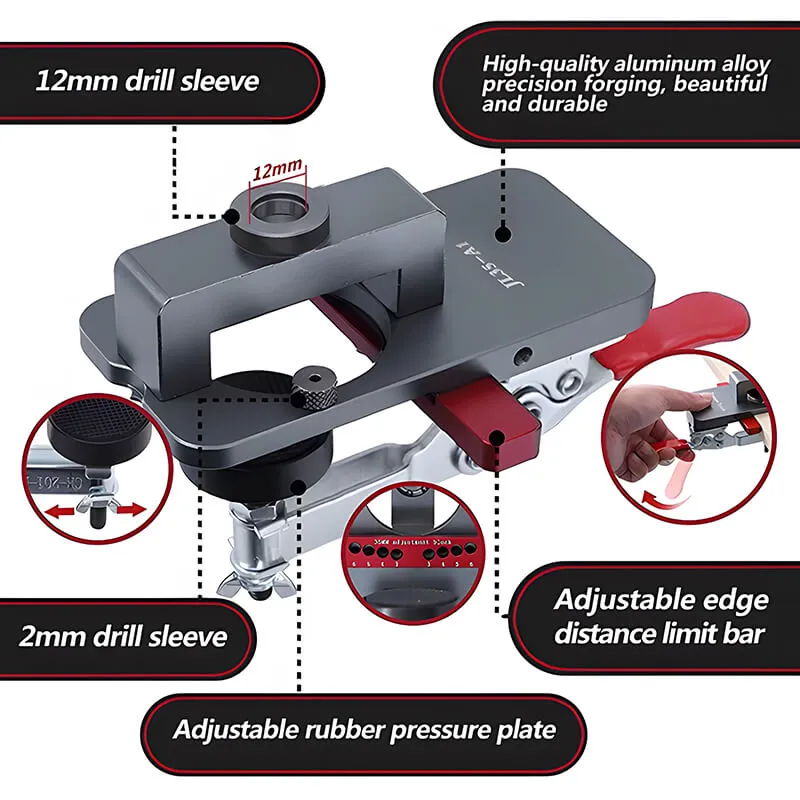

Equipped with universal clamp, stable and strong clamping.
It can fix and punch accurately, prevents injury during operation, and improve accuracy.
Product Features
1. Be able to punch holes for different kinds of boards, install door panels, cabinets, wardrobes, etc.

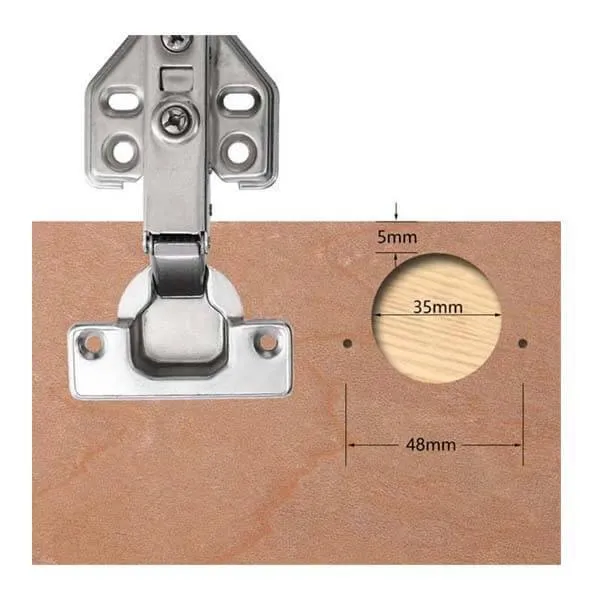

2. It is widely applicable, the distance from 35mm hole to edges is 5mm, which is suitable for most common hinges.
3. Adjustable pressure plate, the thickness of the clamping board can be 15 ~ 25 mm.
4. It can fix and punch accurately, prevents injury during operation, and improve accuracy.
Aluminum alloy material, high strength, high hardness, not easy to rust.
Product Details

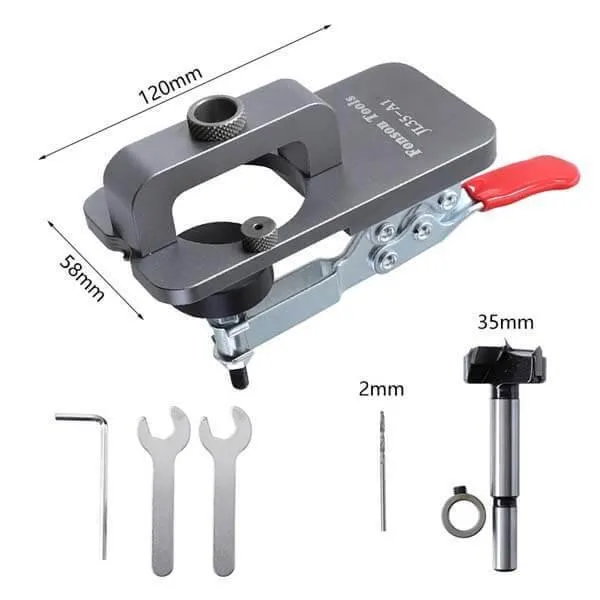

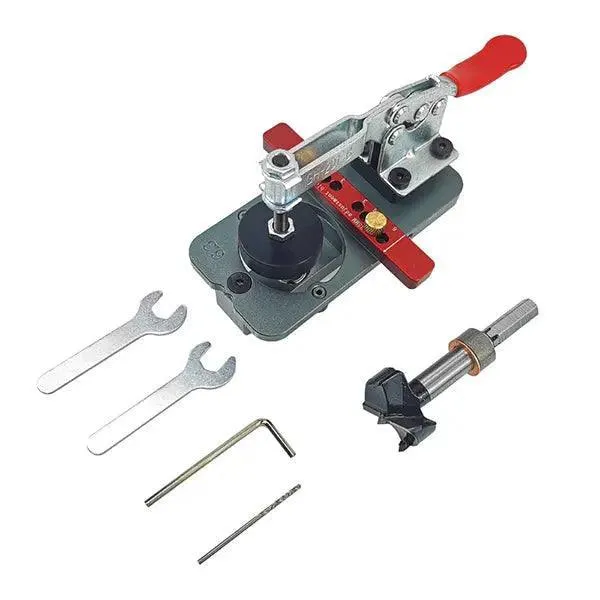

1 x 35mm hole opener (with limit ring)
2 x wrenches

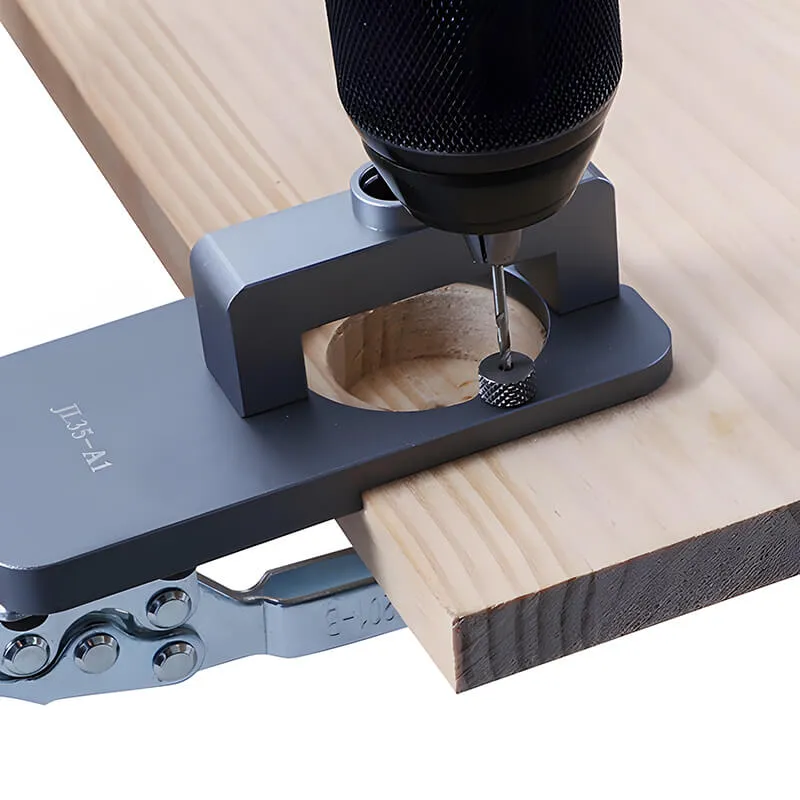

1 x 2mm drill bit
1 x internal hexagon wrench
