Product Details
＋

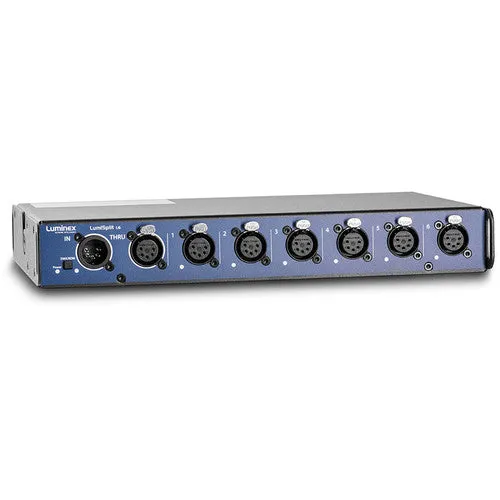

The LumiSplit 1.6 from Luminex is a versatile rackmount/truss mount DMX splitter for professional lighting solutions. With enhanced RDM features, the LumiSplit 1.6 can be managed from any RDM controller, so you won't have to climb trusses to make adjustments.
RDM filtering per port ensures that non-RDM lighting fixtures won't behave strangely. Optic and galvanic isolation safeguards the LumiSplit 1.6 against spikes and power surges on the network. Front panel RGB LED indicators give you a better and easier status indication. Two user profile slots make LumiSplit 1.6 a time-saver during live events. The metal housing and ruggedized etherCON connectors make it ideal for touring and live events.
DMX/RDM Features
- Regeneration mode
- RDM discoverable
- RDM filtering (per input and output)
- No DMX zone selection
- No HTP/LTP merger
- No DMX backup mode
Additional Features
- DMX port isolation: Optical and galvanic isolation per port
- Short circuit protection
- DMX port termination/biasing
- Dark mode
- Two user presets
- Lockable front panel
DMX Input
- One gold-plated Neutrik 5-pin XLR male
DMX Output
- Six gold-plated Neutrik 5-pin XLR female
- One gold-plated Neutrik 5-pin XLR female (throughput)
Protocols
- DMX512 (1986 and 1990)
- DMX512-A
- RDM ANSI E1.20
Power
- One Neutrik powerCON TRUE1 input/output
- 100 to 240 VAC, 50-60 Hz, 16A
Luminex LumiSplit 1.6 Specs
Packaging Info
| Package Weight | 8.595 lb |
| Box Dimensions (LxWxH) | 22.7 x 13.9 x 3.1" |
