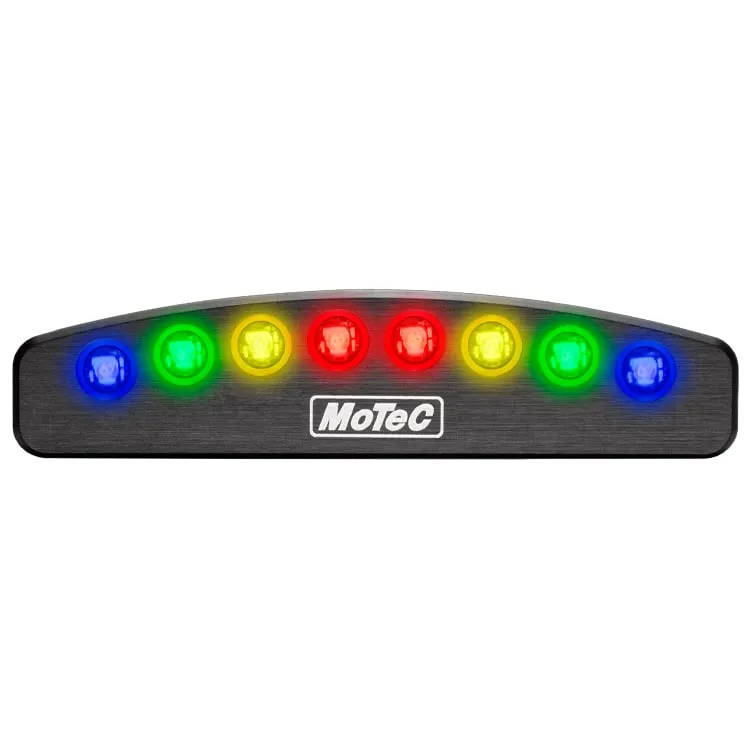

The Shift Light Module (SLM) may be used for shift lights, warning lights or other indicators as programmed by the user.
It provides eight multicolor LED indicator lights in a compact array. The color, intensity and purpose of each LED can be controlled independently, providing enormous flexibility and scope for customization.
A set of patterns can be defined with various color combinations and flashing modes, indicating for example: stop immediately, continue with caution, pit lane speed limiter active and of course, up-shift and down-shift. The LEDs can be programmed in a priority order so that, for example, a warning light can override a shift light.
The SLM is configured and controlled using a MoTeC ECU, display or data logger. Compatible MoTeC devices have special programming functions for the SLM. The module is connected viaCAN eliminating the need to use auxiliary outputs.
LEDs: 8 full color (RGB) LEDs
Communications: CAN
Compatible with:
- SDL3
- ADL3
- ACL (software version V1.10F2 and later).
- M400, M600, M800, M880 (software version V3.41G and later), M84.
Physical:
- Case size 81.2 x 19.0 x 16.0 mm
- 1 x 4 pin Deutsch DTM connector, flying lead
